68RFE M3GA JR V2 Drum

Engineered Overdrive Stability and Clutch Apply Consistency

This SunCoast Performance Loaded 68RFE Overdrive Drum Assembly is a fully assembled, drop-in solution designed to improve clutch apply consistency, structural integrity, and long-term durability within the overdrive circuit.

This is the same overdrive drum assembly utilized in SunCoast Category 4 high-performance 68RFE transmissions, validated in high torque, high load, and elevated temperature operating environments.

Each unit is assembled in-house at our Fort Walton Beach, Florida facility and inspected to ensure proper tolerances, clutch clearances, and hydraulic functionality. Installation requires no machining or modification.

SunCoast V2 Billet Overdrive Drum

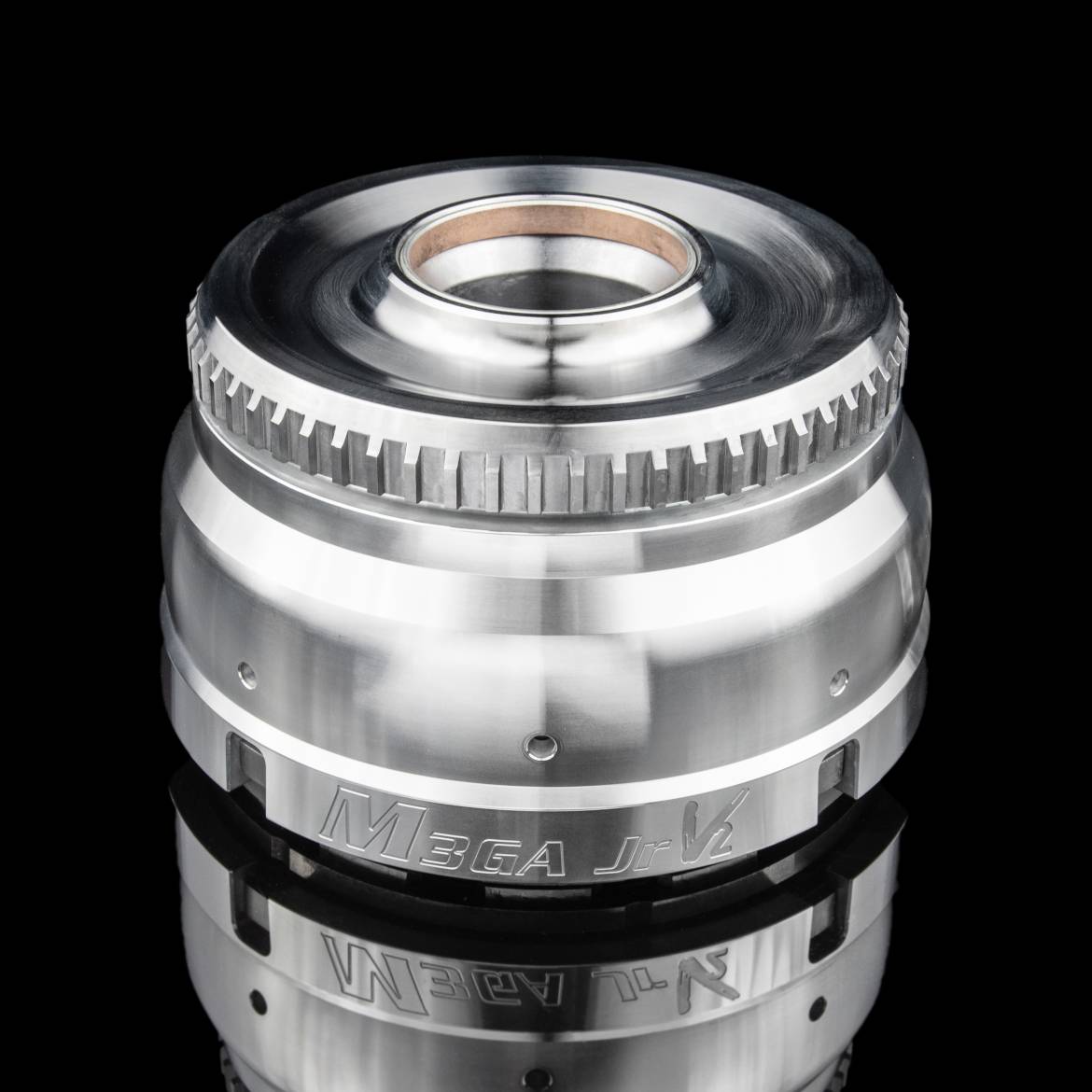

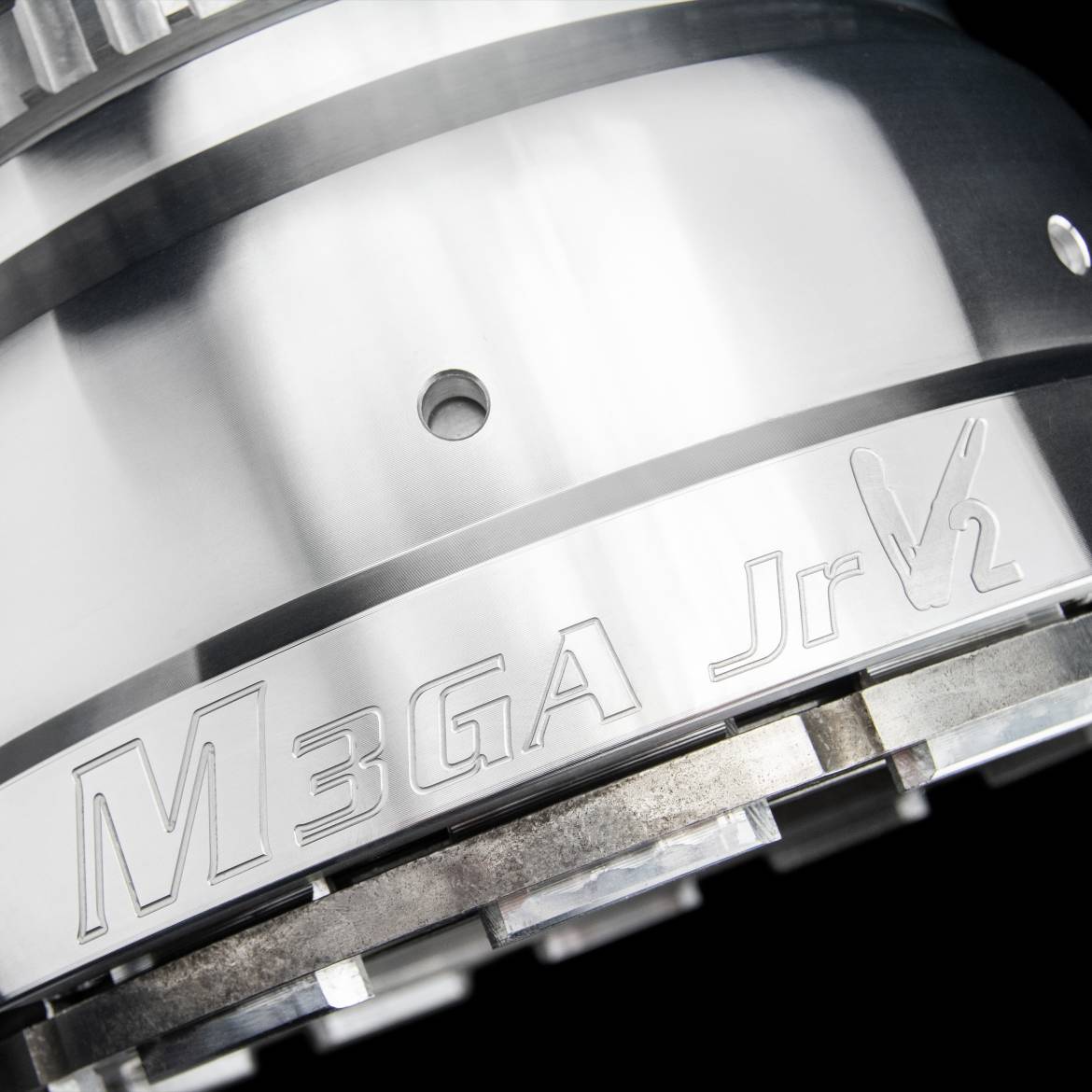

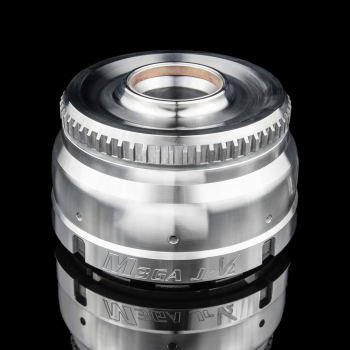

The assembly is built around the SunCoast V2 Billet Overdrive Drum, developed to address structural and hydraulic limitations within the overdrive system.

Design Characteristics

• 24% increase in hydraulic clamping force
• Increased friction element capacity
• Quad-ring inner sealing system for maintained compression at elevated RPM
• Redesigned outer lip seal with increased diameter
• Increased wall thickness for improved rigidity
• Reduced lateral movement of the overdrive apply plate
• Elimination of centrifugal apply springs
• Fully assembled drop-in configuration

Functional Outcomes

• Improved clutch apply efficiency with reduced slip duration
• More consistent hydraulic response across varying load conditions
• Stable clutch clearance and repeatable CVI values over time
• Improved sealing integrity at elevated shaft speeds
• Reduced structural deformation under load

Engineering Significance

The SunCoast V2 billet drum design improves hydraulic efficiency, sealing stability, and structural rigidity within the overdrive circuit. Increased clamping force and friction capacity allow the clutch pack to hold torque with reduced slip, minimizing heat generation and wear.

Enhanced sealing maintains consistent hydraulic pressure at elevated RPM, while increased rigidity and reduced apply plate movement support uniform clutch loading. The removal of centrifugal apply springs further stabilizes apply behavior across the operating range.

When combined with the Alto G3 friction system and SunCoast SRRS, these features operate as a synergistic system—where hydraulic control, friction performance, and mechanical retention reinforce one another.

The result is consistent clutch apply and release, improved torque transfer, reduced thermal loading, and increased durability under sustained load.

Alto High Performance G3 Clutches

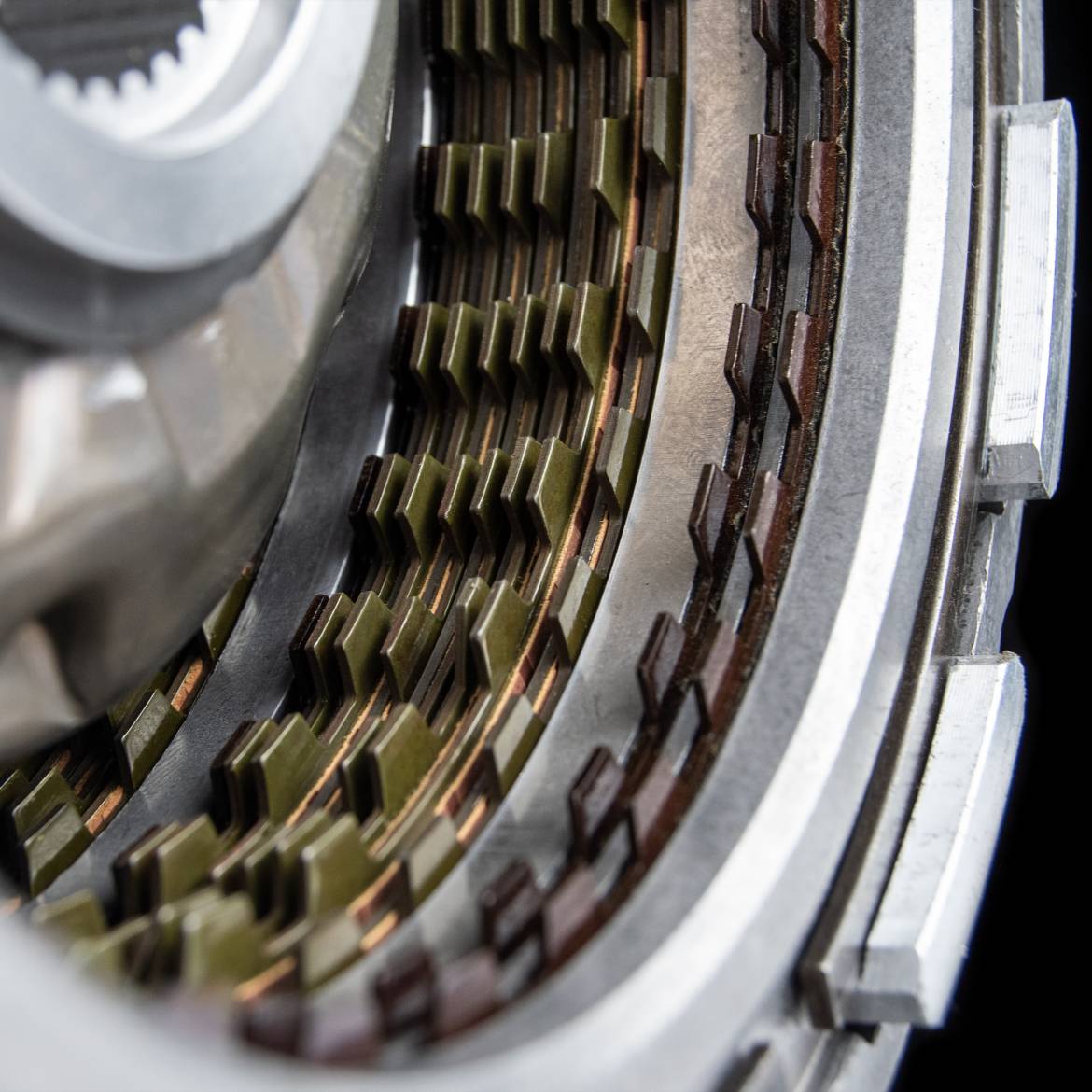

This assembly is equipped with Alto High Performance G3 clutches, increasing clutch capacity to 16 total friction surfaces while significantly advancing friction material performance.

The G3 compound is engineered for high-energy applications where both thermal stability and friction consistency are critical to clutch performance.

Material Characteristics

• High energy friction compound designed for elevated thermal conditions
• Stable coefficient of friction across a wide temperature range
• Increased resistance to glazing and material degradation

Performance Effects

• Increased torque holding capacity
• Reduced slip during engagement
• Improved heat tolerance under sustained load
• Extended friction material service life

By maintaining a more consistent friction coefficient under load, the G3 material allows for cleaner, more controlled clutch apply with less energy lost to heat. This improves torque transfer efficiency while reducing thermal stress on the clutch pack.

Under sustained load and repeated duty cycles, this stability helps prevent performance fade and maintains predictable clutch behavior over time.

SunCoast SRRS — Snap Ring Retention System

The SunCoast Snap Ring Retention System (SRRS) is designed to eliminate snap ring displacement and retention loss—one of the most common mechanical failure points within the 68RFE.

All components are machined from 6061-T6 billet aluminum and engineered to reinforce critical retention points while maintaining clutch pack stability under load.

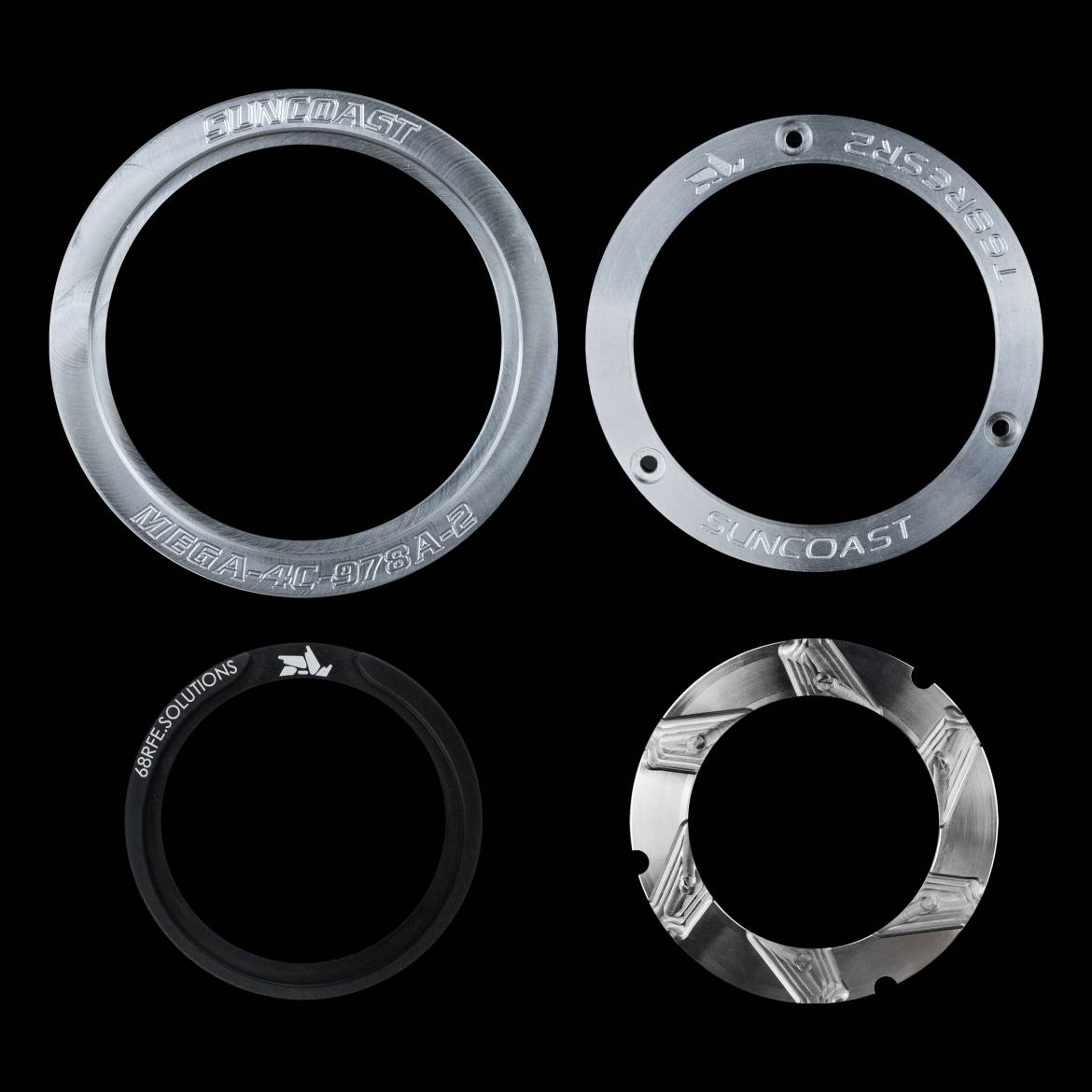

Included Components

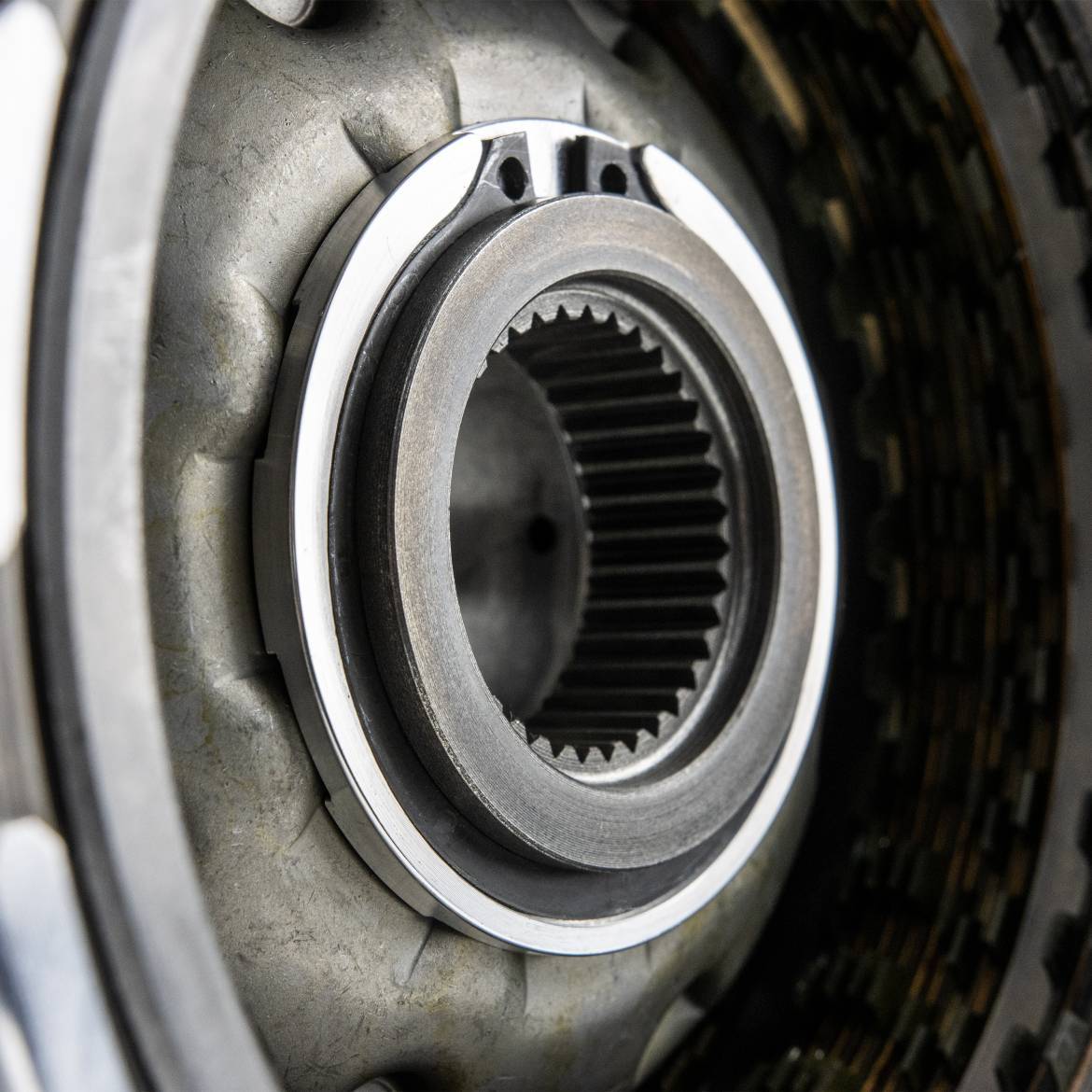

• Input Clutch Hub Snap Ring Retainer
• Billet 68RFE Snap Ring Retainer
• M3GA 4C Snap Ring Retainer

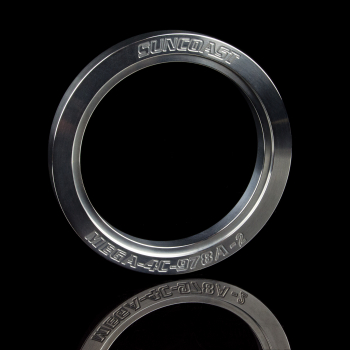

• Billet 4C Reaction Ring Gear Thrust Washer

Billet 68RFE Snap Ring Retainer — Load Control & Retention Stability

The SunCoast Billet 68RFE Snap Ring Retainer is a key structural upgrade within the SRRS system.

Machined from 6061-T6 billet aluminum, this component is designed with increased height to apply additional spring load tension, helping prevent snap ring expansion and loss of retention under high torque conditions.

Engineering Benefits

• Increased spring load to maintain snap ring compression
• Resistance to snap ring expansion under load
• Anti-rotation features to maintain proper positioning
• Improved retention stability during high torque events

This component plays a critical role in maintaining clutch pack integrity by ensuring the snap ring remains fully seated and stable during operation.

System Functions

• Positive snap ring retention through mechanical encapsulation
• Increased spring load control to reduce expansion under torque
• Prevention of snap ring walk-out and groove deformation
• Improved clutch pack alignment and stability

Material Properties — 6061-T6 Billet Aluminum

• High strength-to-weight ratio
• Improved fatigue resistance under cyclic loading
• Increased thermal stability
• Greater durability under thrust and load conditions

System Integration

This assembly is engineered as a unified system where hydraulic control, structural rigidity, and friction performance are balanced.

Combined System Behavior

• Consistent clutch apply and release characteristics
• Increased torque transfer capacity
• Reduced thermal concentration within the clutch pack
• Maintained clutch clearances over time
• Improved durability under repeated load cycles

By combining increased hydraulic clamping force, advanced friction material, and reinforced mechanical retention, the system minimizes variables that typically lead to clutch instability and wear.

Structural components—such as the billet snap ring retention system—maintain clutch pack integrity under load, ensuring that applied force is consistently transferred through the friction elements rather than lost through component movement or deformation.

The result is a system that operates predictably under load, maintains performance over time, and reduces the likelihood of failure associated with heat, deflection, and retention loss.

Built by SunCoast Performance

Each assembly is built and inspected by SunCoast Performance technicians specializing in high-performance diesel transmissions.

This unit is intended for applications requiring repeatable performance, controlled clutch apply, and durability under elevated load conditions.

SunCoast Performance 68RFE Loaded Overdrive Drum Assembly

Consistent Apply. Controlled Operation. Validated Performance.
