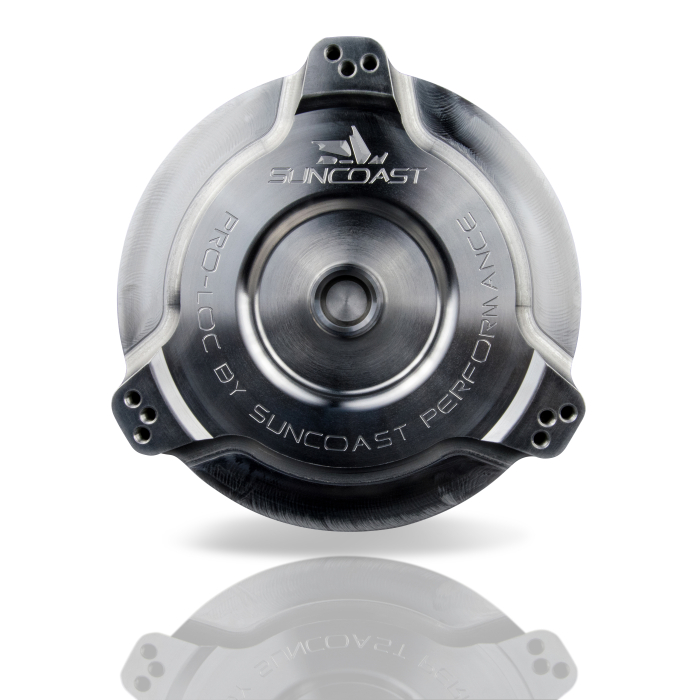

6L80E 300MM Triple Disc Billet Carbon Fiber Torque Converter

Features and Benefits:

  • Stronger Chromoly steel turbine and impeller hub for additional strength and reliability
  • Custom upgraded sprag cartridge with over twice the holding capacity
  • Three friction surfaces more than triple surface area
  • Woven Carbon Fiber clutch material
  • Furnace Brazed Turbine and Pump Fins
  • Torrington Roller Bearing Construction
  • Tig Welded Pump and Turbine Fins
  • Custom CNC'd Billet 4140 billet cover
  • Custom Billet Stator Cap
  • Custom Billet Apply Piston
  • Custom Heat Treated Steel Hub
  • 3-year Unlimited Mileage Warranty

Designed and manufactured in-house, SunCoast 6L80E Torque Converters ensure precise control over the production process, enabling customization for stall and torque multiplication preferences. These triple-disc converters feature a heavy-duty forged billet steel cover, guaranteeing durability and delivering unbeatable lock-up performance. This commitment to robust construction and customization allows SunCoast torque converters to excel in various driving scenarios, making them a reliable choice for drivers with diverse performance requirements.

This custom 300MM 12-inch 6L80E torque converter is ideal for customers who are primarily looking for function over fun or for those looking to improve durability in high-demand driving situations such as towing/off-roading.

The inclusion of a new hardened Chromoly steel turbine enhances its strength, making it well-suited for the increased loads and stresses associated with towing substantial weights. The torque converter's extra-thick forged billet apply piston is designed to withstand the extreme conditions often encountered during heavy-duty towing. This feature minimizes deflection, ensuring reliable performance when facing long drives, heavy loads, challenging terrains, or steep inclines.

Woven carbon fiber clutch plates further contribute to the 6L80E torque converter's suitability for heavy-duty applications by delivering maximum lockup capacity. This is crucial for maintaining efficiency and power transfer during periods of intense load, such as when towing sizable trailers or hauling heavy loads. Additionally, this new 6L80E torque converter features a fully machined billet front cover that provides superior strength and durability.

Additionally, the torque converter's fully machined billet front cover offers superior strength and durability, providing the necessary resilience for extended periods of use. Upgraded components, including a sprag and impeller hub, combined with full Torrington thrust bearing construction, add an extra layer of reliability when subjected to the intense demands of heavy towing.

With stall speed options ranging from 1800-2500, the SunCoast 6L80E torque converter caters to diverse driving needs. Whether for heavy hauling, sled pulling, drag racing, or daily driving, this torque converter offers a well-engineered solution with a focus on durability and performance.



Shipping Information

  • Item Requires Shipping
  • 50.0 lbs.
  • W14.0000” x H10.0000” x L14.0000”
