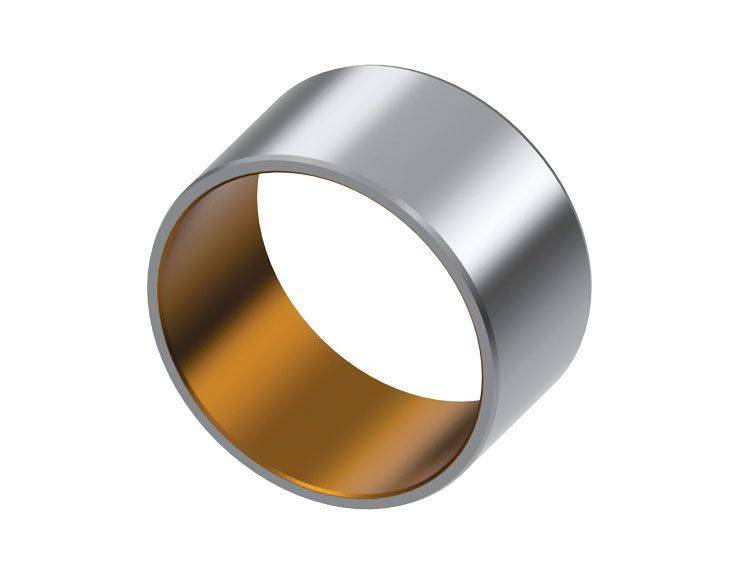

Rear Stator Support Bushing - Pack of 5
95030-02
6R80 (2009–2014), 6R80 (2015-Later), ZF6HP19, ZF6HP26, ZF6HP28
Pricing:
$71.98
Description

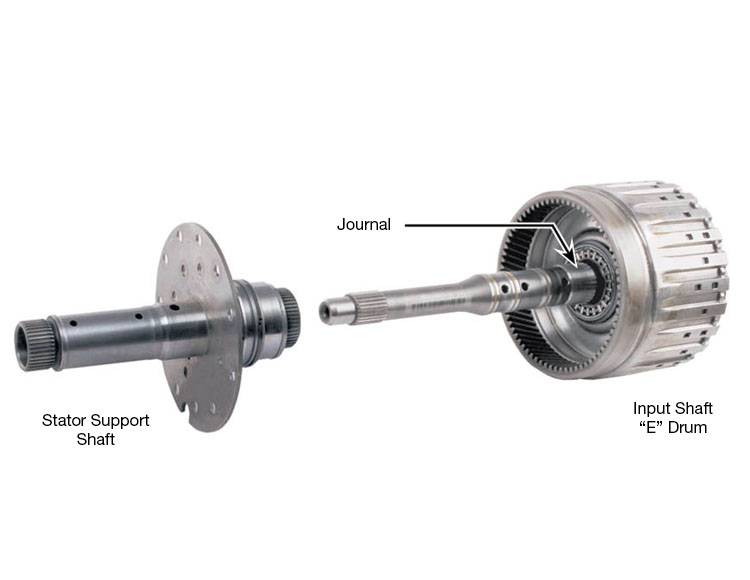

Fits 1.180" (29.96mm) dia. input shaft journal only.

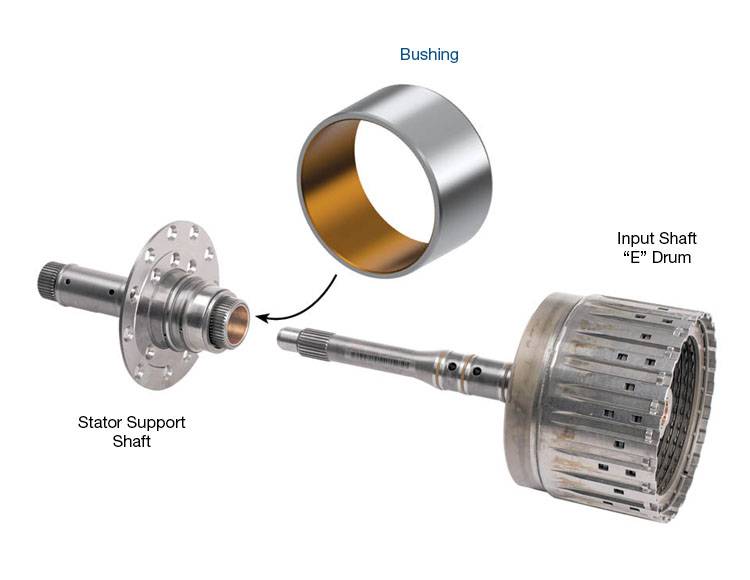

OE rear stator support bushings in ZF6HP26, ZF6HP28 and Ford 6R80 units have a tendency to wear out prematurely due to sub-optimal material composition. This wear can lead to bushing failure, loss of correct pressure to the E-clutch, and gear ratio or solenoid codes. Sonnax offers improved rear stator support bushing 95030-02 to restore worry-free operation.
- Upgraded material composition outperforms OE bushing
- Superior wear characteristics eliminate premature deterioration
- Bushing Style: Precision
- Material: Steel-backed alloy
- Housing Bore: 1.300"
- Shaft Dia.: 1.180"
- Width: 0.697"
- Package Quantity: 5
Symptoms:
- E Clutch burned
- Gear ratio & solenoid codes
- Bushing wear
- Bushing failure
Cause:
OE bushing material composition allows premature wear.Correction:
Install improved material Sonnax rear stator support bushing to restore critical clearances and resist untimely wear.Warning:
Use of an arbor press is required for correct installation. Do not use a hydraulic press or a bushing driver/hammer combination to install, as doing so will distort the bushing and cause fitment issues.
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W4.0000” x H4.0000” x L4.0000”
- $15.00
