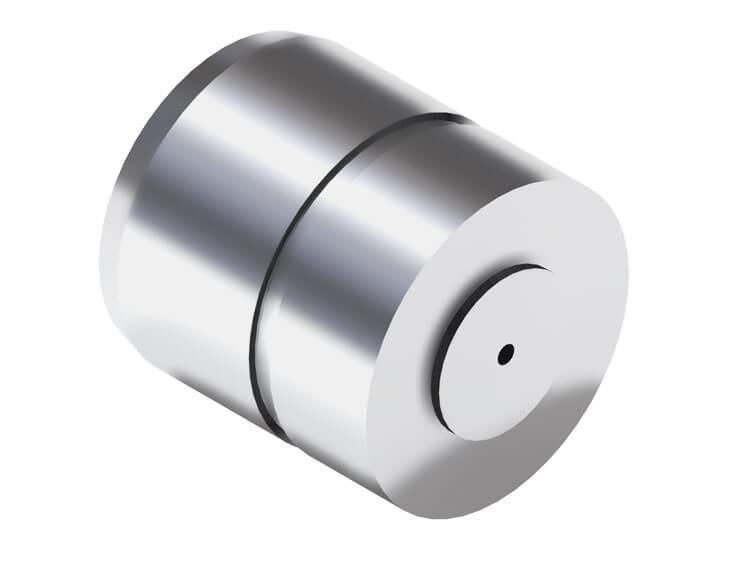

Pressure Regulator Sleeve

(0) Reviews: Write first review
95740-03
6R60, 6R75, 6R80 (2009–2014), ZF6HP19, ZF6HP26, ZF6HP32
Pricing: $48.70

Customize Your Item

- PLEASE SELECT -
 * required
Qty:

Description



Fits 6R80 '09-'14. Does not fit units with a 053 separator plate.



Wear is commonly found at different areas in the ZF6HP19/26/32 (Gen. 1) and Ford 6R60, 6R75 and 6R80 pressure regulator bores. When the sleeve is worn, line pressure balance fluid will leak to exhaust, causing high or inconsistent pressure. When wear is limited to the sleeve, the Sonnax pressure regulator sleeve 95740-03 will restore valve-to-sleeve clearances so the pressure regulator valve can maintain correct pressures. If the remainder of the pressure regulator bore is worn, consider Sonnax oversized pressure regulator valve kit 95740-01K.



  • No machining required
  • Alloy aluminum sleeve is significantly more wear-resistant than the OE sleeve
  • Drop-in Zip Valve™ installs quickly and easily



Kit is NOT compatible with ZF6HP19/26/32 (Gen.1) units with an 053 separator plate code or ZF6HP21/28/34 (Gen.2) units. To differentiate between Gen. 1 and Gen. 2 valve bodies, see ZF Identification Guide.



Symptoms:

  • Broken parts due to excessive line pressure
  • High line pressure
  • Erratic line pressure
  • Restricted converter/lube flow



Cause:

Excess valve and bore clearance allows critical line pressure balance fluid to cross-leak to exhaust, causing high or erratic line pressure.


Correction:

Sonnax drop-in, direct-replacement pressure regulator sleeve addresses sleeve wear and circuit integrity of line pressure balance in the pressure regulator circuit.


Warning:

Verify OE valve & sleeve measurements before use.

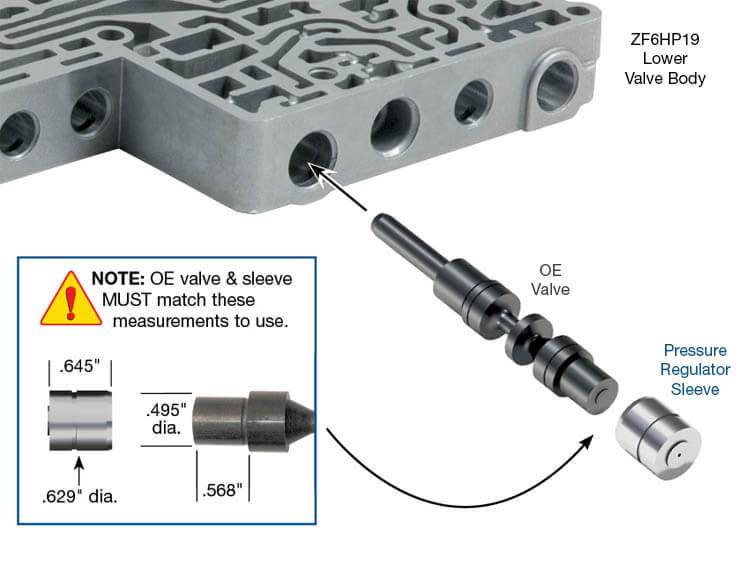

There are some small diameter and length differences that can cause fit and pressure issues if mismatched into the wrong application. It is recommended to measure the locations shown here to verify that the correct OE or replacement part is fit into the appropriate application during rebuild.

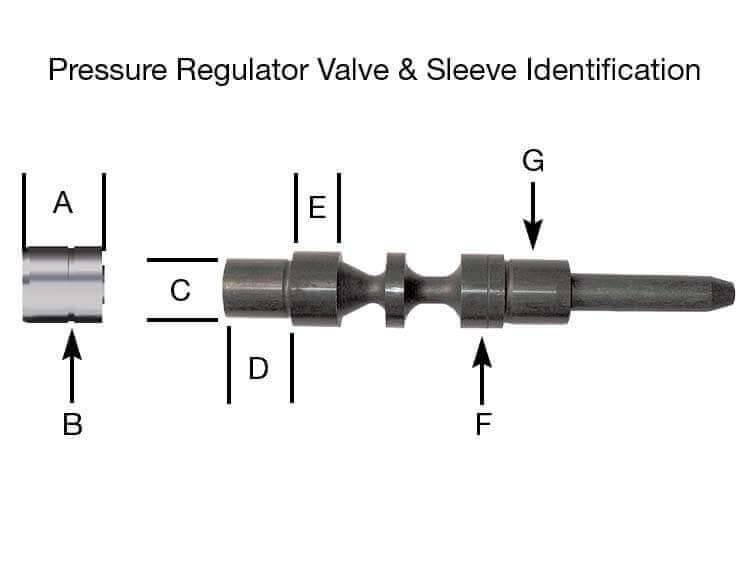

 Application  A  B  C  D  E  F  G
 ZF6 Gen. 1, 6R60, 6R75, 6R80 ('09–'14)   .645"  .629" Dia.   .495" Dia.  .568"   .378"  .629" Dia.   .550" Dia.
 ZF6 Gen. 1 w/ 053 Separator Plate  .725"  .657" Dia.  .511" Dia.  .649"  .378"  .657" Dia.  .586" Dia.
 ZF6 Gen. 2  .804"  .629" Dia.  .511" Dia.  .725"  .418"  .629" Dia.  .562" Dia.
 6R80 ('15-Later), 6R100  .645"   .629" Dia.  .511" Dia.   .568"  .378"   .629" Dia.  .550" Dia.
