Solenoid Test Manifold Kit
Description
The leading cause of solenoid failure in Ford 6R60, 6R75, 6R80, 6R100, ZF6HP19/26/32 (Gen. 1) and ZF6HP21/28/34 (Gen. 2) units is an inability to maintain an internal mechanical seal, resulting in a multitude of drivability concerns. Since it is not an electrical failure, it can be difficult to evaluate whether a solenoid is the cause of a particular problem.
Sonnax solenoid test manifold kit 95430-VTK allows quick, easy, cost-effective pass/fail verification of the solenoid's internal sealing integrity, taking the guess work out of replacing solenoids.
- Must be used with Sonnax vacuum test stand VACTEST-01K

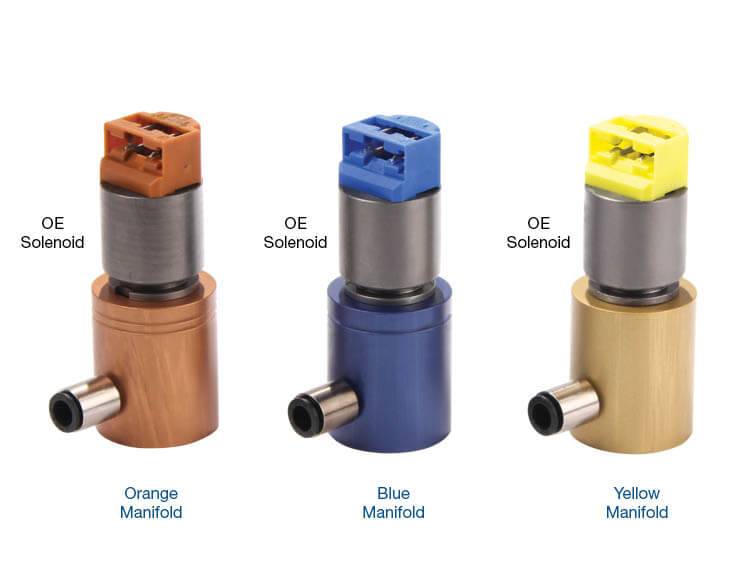

- Test solenoid sealing reliability with vacuum by inserting solenoid snout into Sonnax test manifold
Manifold Usage:
Ford 6R60, 6R75, 6R80, 6R100 solenoids function very similarly to the the ZF6 Gen. 1 versions (although with a significantly lower failure rate) and can be tested using these manifolds, though the colors differ. See chart below for reference:
| Manifold | ZF6 Solenoid | 6R60 or 6R75 Solenoid | 6R80 or 6R100 Solenoid |
|---|---|---|---|

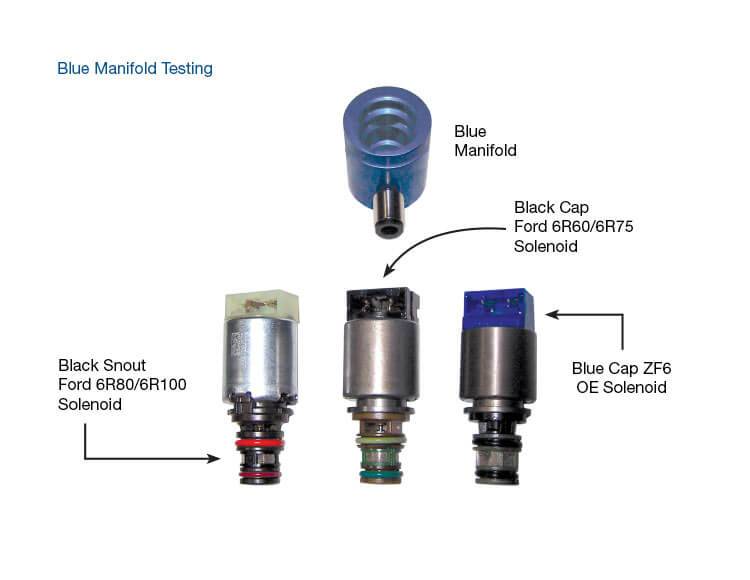

| Blue | Blue Cap | Black Cap | Black Snout |

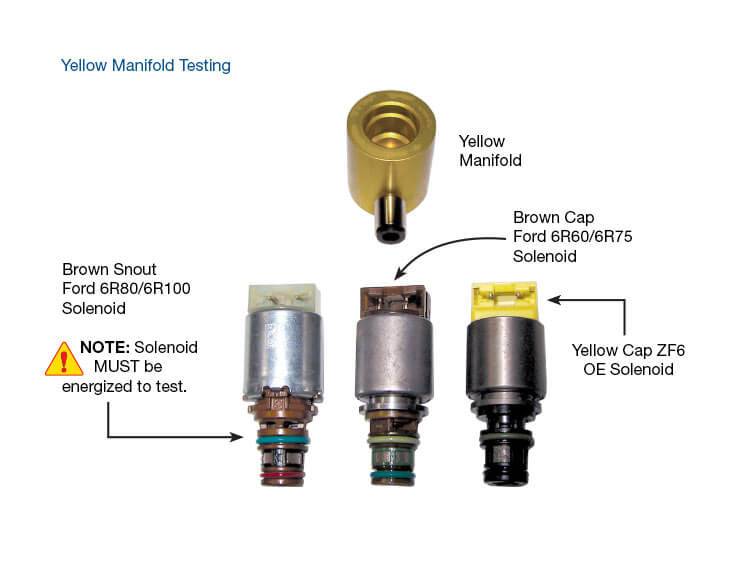

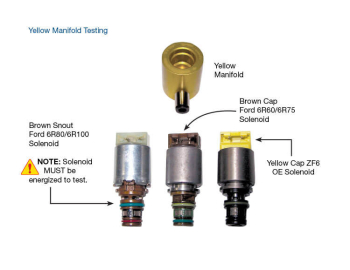

| Yellow | Yellow Cap | Brown Cap | Brown Snout (Must be energized to test) |
| Orange | Orange Cap | - | - |

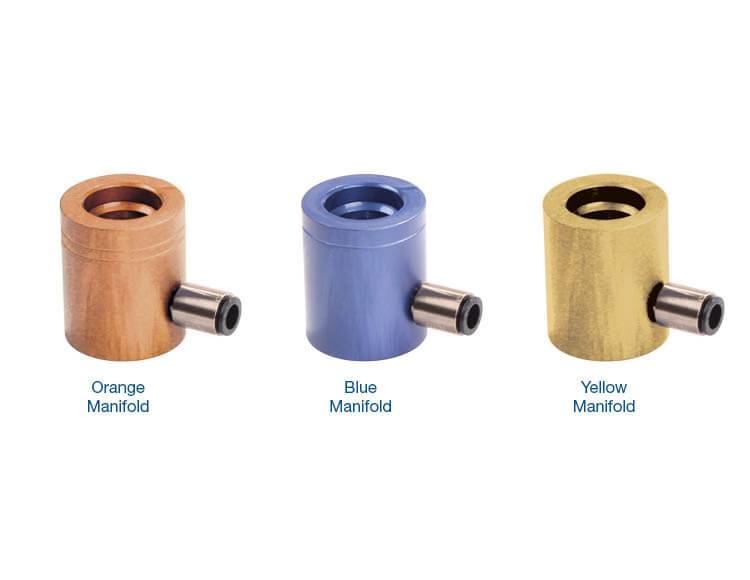

- Blue Manifold
- Yellow Manifold
- Orange Manifold
Warning:
Sonnax test manifold kit can prove or disprove internal mechanical sealing ability only; it does not test the integrity of the electrical coil and contacts. See instructions for details.
