2020-2026 FORD DIESEL 10R140 HEAVY-DUTY TRANSMISSION PAN

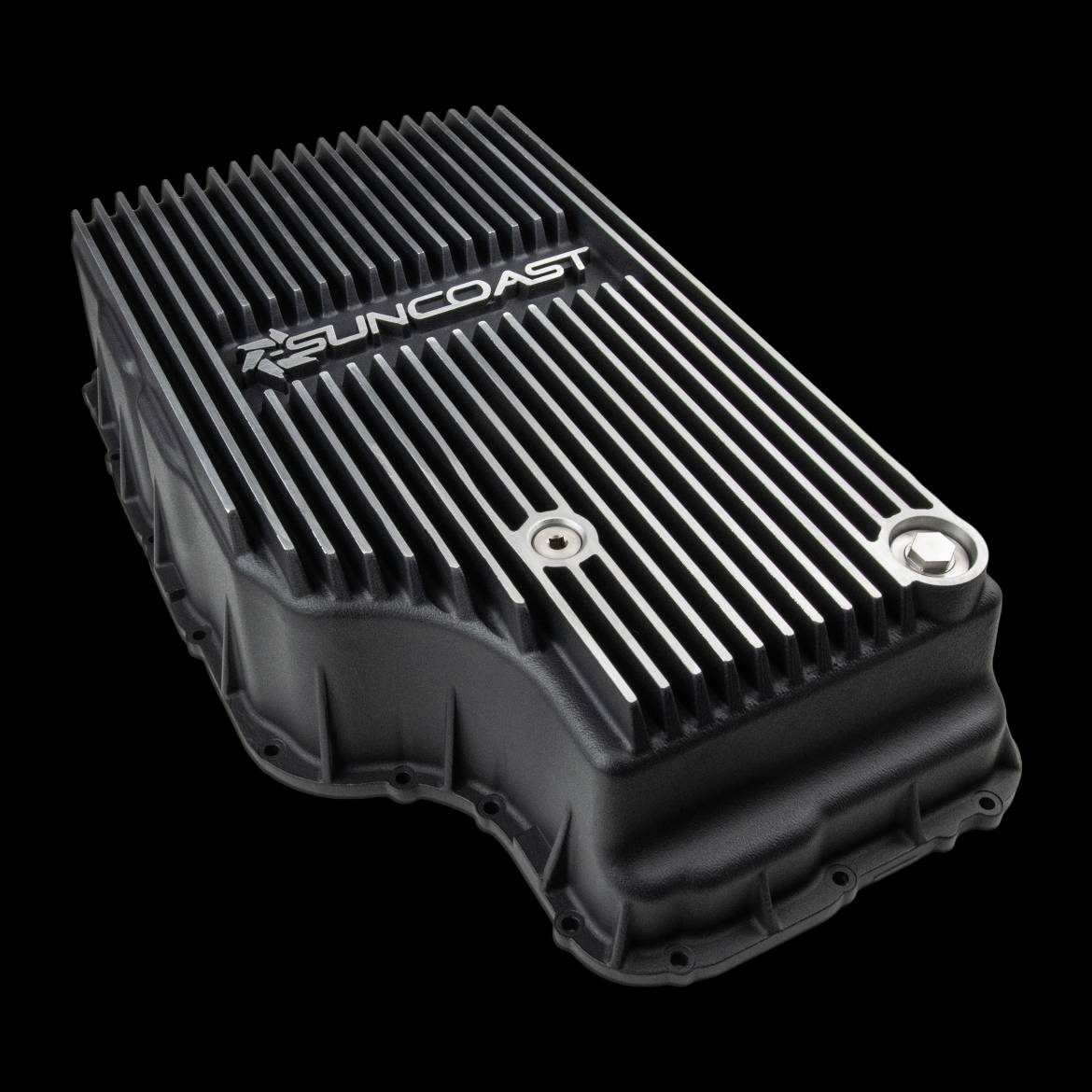

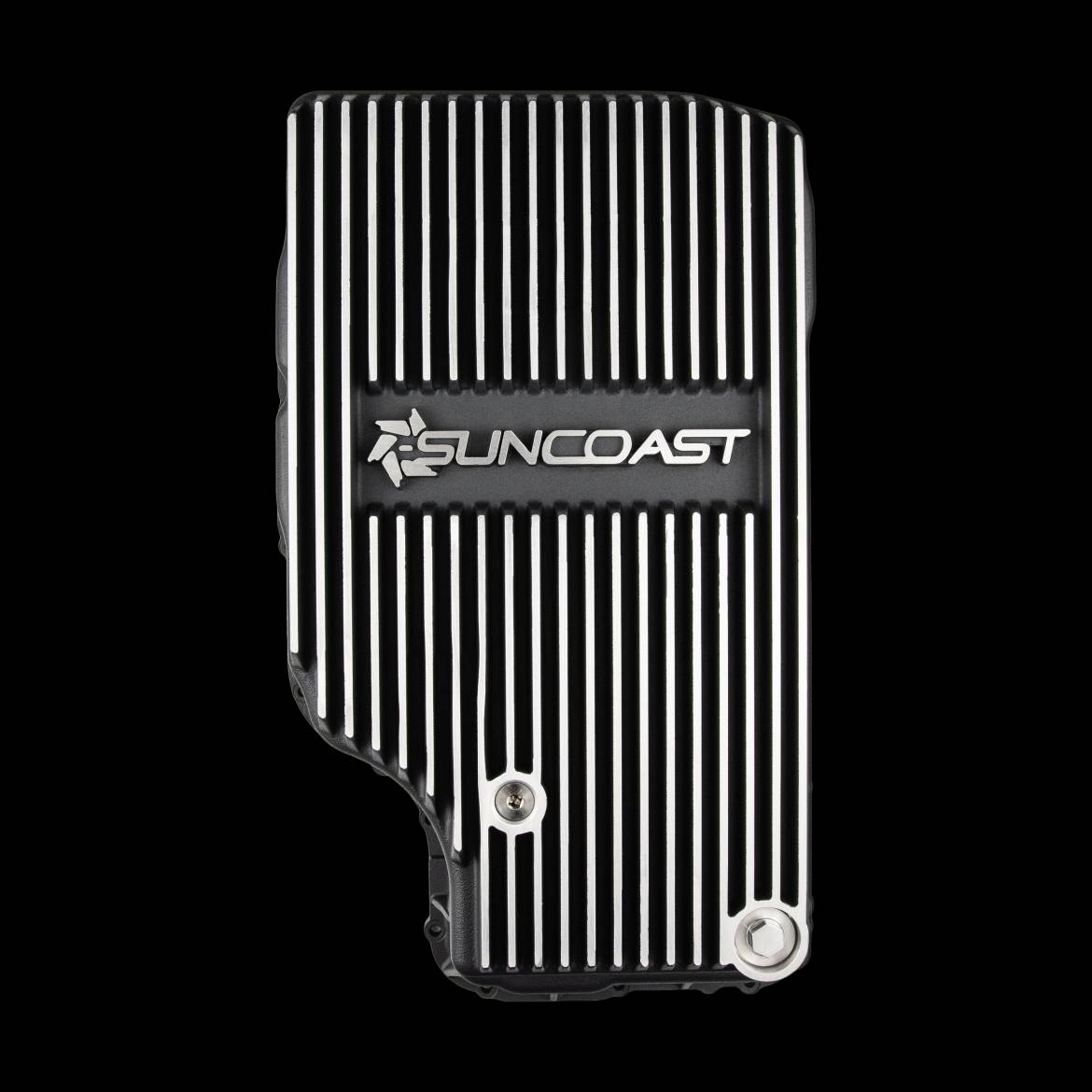

SunCoast 10R140 Deep Pan | Heavy-Duty Cast Aluminum Transmission Pan

Maximum Cooling. Increased Capacity. Unmatched Protection.

The SunCoast 10R140 Deep Pan was engineered for truck owners who demand more from their transmission. Whether you're towing heavy loads, hauling equipment, running oversized tires, making increased horsepower, or simply expecting maximum reliability from your Super Duty, the SunCoast 10R140 Deep Pan delivers the cooling capacity, durability, and protection your transmission needs to survive in the harshest operating environments.

Excessive heat is the number one enemy of any automatic transmission. As transmission temperatures increase, fluid viscosity begins to break down, reducing the fluid's ability to lubricate gears, bearings, bushings, clutch packs, and valve body components. Every increase in operating temperature accelerates fluid degradation and component wear. The SunCoast 10R140 Deep Pan was designed to combat these issues through increased fluid volume, superior thermal conductivity, and enhanced structural rigidity.

Manufactured from premium A356.0-T6 heat-treated cast aluminum alloy, the SunCoast 10R140 Deep Pan offers a significant performance advantage over conventional cast aluminum, stamped steel, and composite transmission pans. A356 aluminum is widely utilized in aerospace, motorsports, and heavy-duty industrial applications because of its exceptional strength-to-weight ratio, excellent thermal conductivity, and superior resistance to fatigue cracking. The T6 heat-treatment process further enhances the material's mechanical properties by increasing tensile strength, yield strength, and dimensional stability, creating a casting capable of handling extreme loads and operating temperatures without distortion.

Unlike standard aluminum castings, A356.0-T6 aluminum provides outstanding heat transfer characteristics, allowing heat generated within the transmission fluid to move rapidly into the pan structure where it can be dissipated into the surrounding airflow. This makes the SunCoast 10R140 Deep Pan an active cooling component rather than simply a fluid reservoir.

One of the biggest advantages of the SunCoast 10R140 Deep Pan is its additional 8-quart fluid capacity. Increasing transmission fluid volume does far more than simply add fluid. The additional capacity increases the total thermal mass of the transmission system, allowing it to absorb significantly more heat energy before temperatures begin to rise. In simple terms, a larger fluid volume heats up more slowly, remains more stable under load, and recovers faster after periods of high stress. This increased thermal reserve is especially beneficial during towing, heavy hauling, mountain driving, off-road operation, and performance applications where transmission temperatures can rise rapidly.

The larger fluid capacity also helps extend fluid life by reducing thermal cycling and minimizing fluid oxidation. Lower average operating temperatures help preserve additive packages within the fluid, resulting in more consistent lubrication performance and longer service intervals.

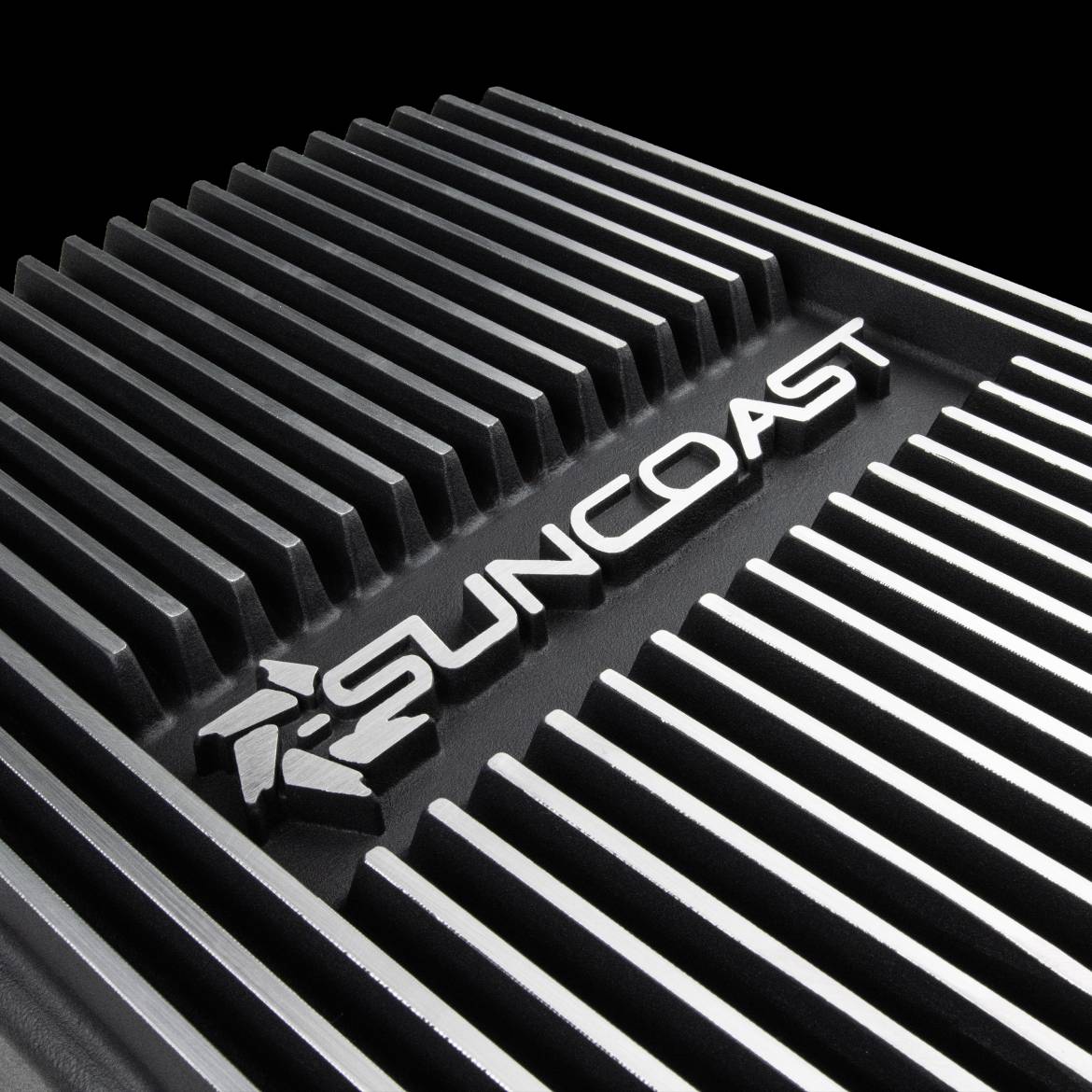

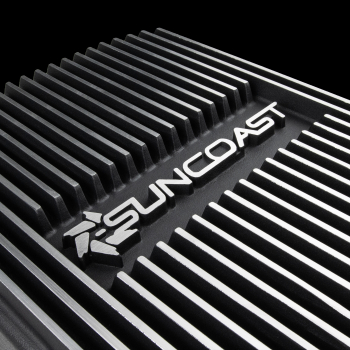

To maximize cooling performance, the SunCoast 10R140 Deep Pan features massive 3/4-inch external cooling fins that dramatically increase surface area exposed to airflow. These deep fins efficiently transfer heat away from the transmission fluid while simultaneously increasing the structural rigidity of the pan. The result is a stronger pan capable of withstanding impacts and harsh operating conditions while providing superior thermal management.

Internally, the pan incorporates one-inch deep cast baffles strategically engineered to increase fluid contact with the aluminum casting. By exposing more fluid to the cooling surfaces of the pan, heat transfer efficiency is improved throughout the entire transmission system. These internal baffles also minimize fluid slosh during acceleration, braking, cornering, and off-road operation, ensuring consistent fluid pickup and stable transmission performance.

Together, the external cooling fins and internal baffles create an integrated cross-bracing structure throughout the casting. This design dramatically improves impact resistance, distributes loads more effectively, and creates one of the strongest 10R140 transmission pans available. The reinforced architecture helps protect the transmission from road debris, off-road hazards, and other impacts that can damage factory transmission pans.

Additional cast-in gussets provide support to the transmission housing flange, increasing overall rigidity and helping maintain long-term sealing integrity under extreme operating conditions. Precision casting using permanent steel molds ensures exceptional dimensional accuracy, a consistent finish, and precise fitment.

The SunCoast 10R140 Deep Pan is also engineered with serviceability in mind. A heavy-duty 304 stainless steel drain plug incorporates a powerful high-temperature neodymium magnet designed to capture and retain harmful ferrous particles before they can circulate through the transmission. By removing these contaminants from the fluid stream, the magnetic drain plug provides an additional layer of protection for clutch packs, valve body components, bearings, and gears.

A built-in 1/8-inch NPT port with pre-installed plug allows for easy installation of transmission temperature sensors, pressure monitoring equipment, or data acquisition systems for customers who want to monitor transmission performance under demanding conditions.

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy construction
• Precision-cast using permanent steel molds for superior strength and dimensional accuracy
• Increases transmission fluid capacity by 8 quarts
• Massive 3/4-inch external cooling fins improve heat dissipation and impact resistance
• Deep one-inch internal baffles improve heat transfer and reduce fluid slosh
• Integrated cross-bracing structure increases rigidity and durability
• Cast-in gussets reinforce the transmission flange for maximum strength
• 304 stainless steel magnetic drain plug with high-temperature neodymium magnet
• Premium Viton O-ring for superior sealing performance
• Integrated 1/8-inch NPT accessory port with plug installed
• Compatible with OEM gasket and filter
• Direct-fit installation
• Designed for towing, hauling, racing, and severe-duty applications

Benefits

• Lower transmission operating temperatures
• Increased thermal capacity and heat absorption
• Slower fluid temperature rise under heavy loads
• Improved transmission reliability and longevity
• Reduced fluid degradation and oxidation
• Better protection for internal transmission components
• Enhanced structural strength and impact resistance
• Improved fluid control during aggressive driving conditions
• Easier maintenance and inspection
• Increased confidence when towing, hauling, or making higher horsepower

When maximum durability, cooling performance, and transmission protection matter, the SunCoast 10R140 Deep Pan delivers the engineering, capacity, and strength required to keep your 10R140 transmission operating cooler, longer, and more reliably than stock.
