SUNCOAST CATEGORY 4 10R80 EXTRA CAPACITY REBUILD KIT WITH SUNCOAST PRO-LOC VALVE BODY AND BILLET FLEXPLATE

10R80 CATEGORY 4 REBUILD KIT WITH RAYBESTOS GPZ CLUTCHES

SC-10R80-CAT4
10R80 CATEGORY 4 REBUILD KIT WITH RAYBESTOS GPZ CLUTCHES
Pricing: $4,825.00

Customize Your Item

- Please Select -
 * required
- -- Please Select -- -
 * required
Qty:

Description

Car makers don’t often collaborate on projects, especially when they’re direct competitors. However, looming government fuel economy and emissions mandates can make strange bedfellows. And so, the Ford 10R80 10-speed automatic transmission was born. It was co-developed with General Motors, although Ford apparently took the engineering lead on the design. The mission was to create a 10-speed transmission that could improve both the fuel efficiency and performance of high-horsepower engines. The resulting Ford 10R80 transmission was advanced enough to handle the power of the Ford Mustang GT 5.0 and Ford F150 Raptor, while improving the efficiency of the Ford Expedition and Lincoln Navigator.

Like it or not, a CVT transmission is one of the most efficient gearboxes ever invented. Because there are no actual gears, optimal engine speed can be continuously maintained depending on the load. This allows for seamless acceleration under hard throttle and lower fuel consumption when you’re just cruising. On a traditional geared transmission, a certain amount of energy gets lost every time a gear ratio is changed. This penalizes both fuel economy and performance because the engine has to climb back to the RPMs it was just at. The Ford 10R80 10-speed transmission is designed to combine the efficiency benefits of a CVT, with the stepped feel of a traditional automatic transmission.

To create this optimal blend of performance and efficiency, the 10R80 transmission has a wide 7.39 gear ratio spread and a low 4.70 first gear for maximum performance off the line. Even though this Ford 10-speed automatic transmission has such a wide gear ratio, it has extremely small steps between the gears. This means the engine RPM only drops (approximately) 20% with each shift, which keeps the engine in the ideal RPM range to achieve either peak performance or efficiency (much like a CVT transmission). The Ford 10R80 also has three overdrive gears, which it can downshift from very quickly.

10R80 Transmission Gear Ratios

First – 4.70
Second – 2.99
Third – 2.15
Fourth – 1.80
Fifth – 1.52
Sixth – 1.28
Seventh – 1.00
Eighth – 0.85
Ninth – 0.69
Tenth – 0.64
Reverse – 4.87

As shown above, this transmission offers a beautiful shift recovery in every gear which lends itself the perfect unit for narrow power bands. This allows the use of much larger camshafts in a naturally aspirated application. If you are looking into going to a forced induction setup, this shift recovery allows for larger turbo and AR housing for max performance.

Newly Designed Thermal Flow Control Filter

This 10R80 transmission has a newly designed filter that has two types of media, fine and course (medium). The course medium is common in most filters (orange filter paper), and the fine medium filtration (White paper) is the newer material. There is a thermal plate inside the filter that separates the course and fine media. When the oil is colder (higher viscosity) at startup, the fluid will flow through both the fine and course filter media.

As the fluid heats up (less viscosity), the thermal plate will bend and restrict the coarse media section, directing most of the fluid through the fine media and, therefore, catching more of the finer debris once the fluid is heated giving it a far superior filtration system.

This new SunCoast 10R80 rebuild kit comes with a new factory filter to ensure zero flow issues.

The Clutches

Raybestos Powertrain GPZ friction plates greatly increase transmission performance and durability. This state-of-the-art friction material far exceeds OE material to withstand high stress, high temperatures and repeated cycling. GPZ's outstanding performance benefits are perfect for heavy-duty vehicles and high-stress driving. Testing of GPZ revolutionary friction material shows that it outperforms OE materials by as much as 20%. Plus, its performance improves as the power increases.

Advantages:

  • Withstands high horsepower
  • Greater torque capacity
  • Maintains piston travel
  • Optimum performance
  • Higher heat resistance
  • Smooth engagements
  • Enhanced shift feel

The 10R80 Rebuild Kit and Its Contents

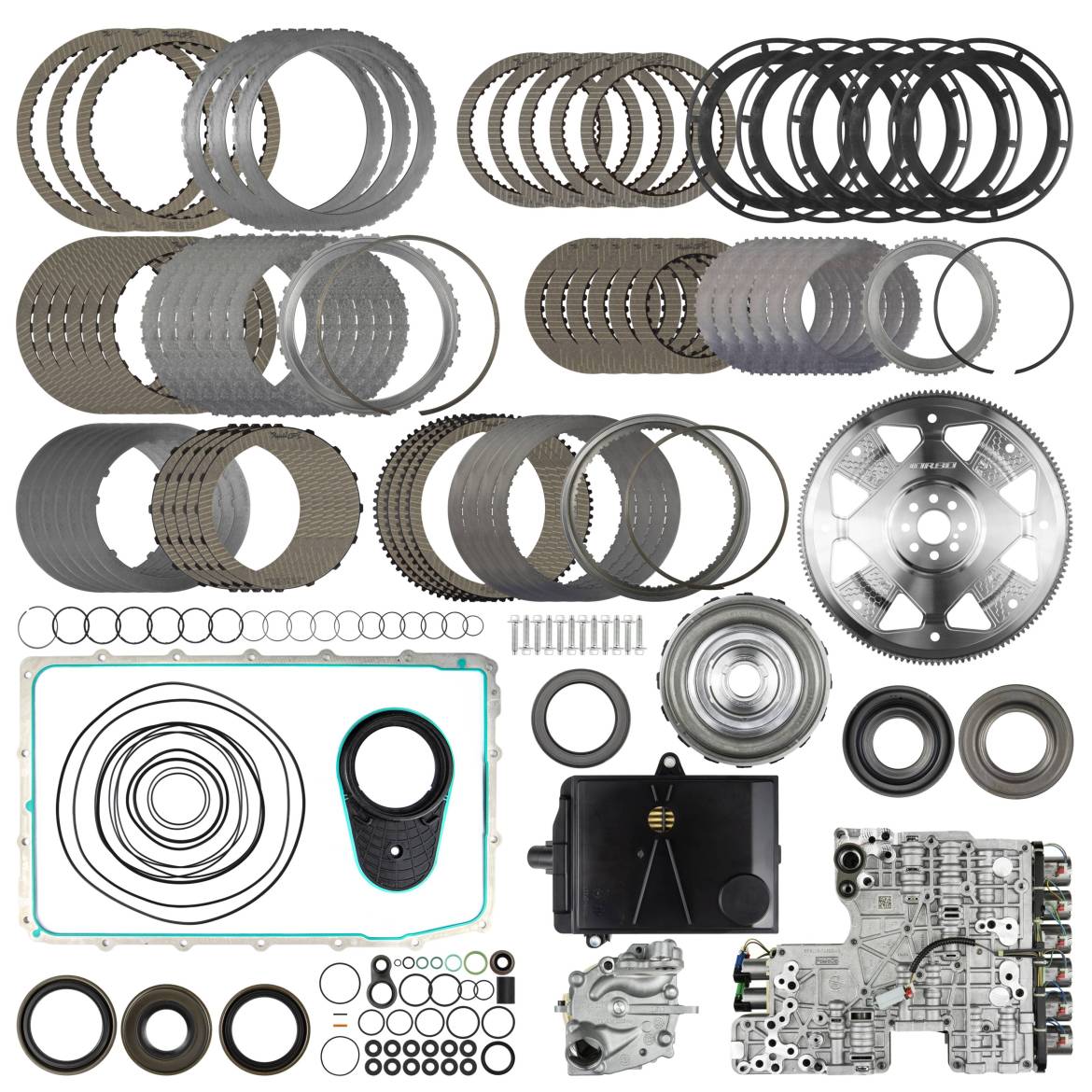

This is a complete clutch and steel module kit that fits the new Ford 10R80 Transmission. This module kit contains all of the clutches and steels necessary to rebuild your 10R80 transmission. The Ford 10R80 transmission comes standard in the Ford F150, Bronco and the Ford Mustang.

This Suncoast upgraded 10R80 transmission rebuild kit comes with new Raybestos GPZ clutches, steels, factory OEM filter and high performance overhaul kit.

This Suncoast 10R80 rebuild kit contains all the frictions and steels you will need to do a clutch and steel replacement on a 10R80 transmission containing extra capacity "D", "E" and "F" clutch modules. This 10R80 rebuild kit was designed to be a re-clutch for a stock capacity unit utilizing the Raybestos GPZ paper and high performance steels.

The Expanded Capacity Clutch Modules

The 10R80 transmission, while a very capable unit, has its deficiencies just like anything else when it is asked to perform outside its original design intention. Since it's debut in 2018, Suncoast has been actively involved in research and development of this new platform. With our active partnership with Raybestos powertrain, we can now deliver you the very best product to date with the 10R80 platform. These new Suncoast 10R80 transmission expanded capacity clutch modules that are included are completely drop-in replacements. Absolutely no machining is required.

The "D" Clutch

It is not uncommon to see rapid degradation along with premature failure with this clutch pack in even stock form.

The "D" clutch is engaged in P, R,1,2,3,4,6,7,8,10. Where the problem lies is in its oncoming clutch responsibilities when engaged in 6th gear as the oncoming clutch. With this responsibility in higher horsepower or more demanding driving situations it becomes very obvious uptown teardown this clutch has seen its share of abuse.

Suncoast provides GPZ friction material, providing higher friction coefficients, increasing torque capacity well beyond the factory limits. This along with our higher apply pressure with our high volume 10R80 transmission pump creates the perfect environment for more reliable shits. The new Suncoast 10R80 transmission clutch module requires absolutely no machining or modifications to your current unit...we supply everything needed.

The "E" Clutch

If the 10R80 transmission had evil twin redheaded stepchildren, the "E" clutch would definitely be one of them. This other proverbial thorn in your side would be the "F" clutch.

This clutch, the "E" clutch in a 10R80 transmission, is engaged in 1,3,5,6,7,8, and 9th. The real issue becomes apparent pretty quick. This clutch is cycled on 3 times and off 2 times by the time you are in 5th gear. The clutch is on in 1st then cycled off in 2nd, cycled back on in 3rd, then back off in 4th...only to be cycled back on in 5th gear. In higher-horsepower or higher-demand towing and hauling situations, this constant cycling on and off can lead to premature failure.

Suncoast has addressed this issue with the 10R80 transmission by improving the clutch friction properties with the New Raybestos GPZ material and increasing clutch capacity by a whopping 20%. This takes the clutch stack-up from a factory 5-clutch stack up to a 6-clutch stack-up. We simultaneously are addressing the heat issue with both improved friction coefficient, as well as increasing surface area. This Suncoast 10R80 transmission "E" high capacity comes completely assembled and stacked up with a new (not used) OE machined drum, piston and backing plate.

The "F" Clutch

This clutch is also prone to premature wear as we have seen with other Lepelletier Ravigneaux Gear sets...oncoming clutches in higher gears seems to take the blunt of the beating. With the new 10R80 transmission, the "F" clutch is no exception.

The "F" clutch is engaged in R,4,5,6,7,8 and 9th. The quickest path to early or premature degradation to this clutch pack is wide open throttle or heavy-load-indexed 3rd to 4th shifts. This is especially prominent in applications where torque management has been deleted.

Suncoast has corrected this issue by adding 25% more capacity to this clutch pack by taking it from 4 clutches to 5 in this particular clutch pack.

The Pro Loc Valve Body and Pump

With the SunCoast 10R80 Pro Loc valve body, we are addressing several key issues we have seen in regard to the 10R80 transmissions. This is not an approach that is simply bumping in more line pressure in hopes of ascertaining more clamping force; it’s a multi-faceted approach addressing several key issues when exposing these units to more demanding driving environments. These range from heavy towing and hauling to street racing and drag racing.

The factory 10R80 transmission lock-up circuit is an impressive one, in that it can make converter lockup seem somewhat uneventful. The refinement in its engagement is definitely next-level to what we have seen in the past. As nice as this feels in reference to the NVH (Noise Vibration Harshness), when we start introducing situations where the load demands are testing the limits or outside what the vehicle was initially designed for, it can become a huge problem.

In our SunCoast 10R80 Pro Loc Valve Body we are specifically looking to decrease the time from initial lock-up apply to zero turbine slip. In doing this, we are changing the lockup circuit by replacing the torque converter clutch (TCC) valve in order to increase lockup holding apply fluid pressure. The lockup oil transition time is also improved by modifying critical oiling circuits for the fluid to reach the TCC clutch, resulting in quicker apply time, and therefore, reducing TCC clutch degradation. By reducing degradation per apply cycle, we are allowing for improved reliability and performance.

(NOTE: For maximum results in power levels exceeding 800HP, it is highly recommended that the TCC apply offset be changed in the factory file calibration)

The next facet we address is the lube circuit. The lube circuit on the 10R80 transmission is responsible for supplying oil to the planets, clutches, bushings, etc. From the factory, the lube circuit oil is dispersed throughout the transmission as low as 6 PSI. Under normal load demands, this is perfectly acceptable. In more stressful and demanding situations, an increase in lubrication to clutches, steels, planets is ideal for removing heat and dealing with the increased demands.

In our 10R80 Valve Body we are specifically addressing this circuit from 6 PSI to a whopping 20 PSI. This is a 250% improvement from the factory calibration, resulting in reduced frictional heat generated. This reduction in heat helps lessen pre-mature failure that can become increasingly evident in high horsepower applications.

Another modification to our SunCoast Pro Loc 10R80 Valve Body involves the regulator valve (latch valve) circuit. This oil circuit is responsible for fully engaging the clutches, allowing for full clutch line pressure. In factory form, the regulator valve we are specifically targeting is responsible for A, B, C, and F clutch packs. Of course, our primary clutch pack concern is the 'F" clutch, which tends to be the first and most prominent clutch pack failure with the 10R80 in higher horsepower or more demanding environments.

In a factory 10R80 valve body calibration, the regulator valve (latch valve) becomes fully engaged, allowing full fluid flow for engagement at 120 psi. When this occurs, the oncoming clutch pack has maximal clamping force. When the clamping force is engaged to max capacity, we ascertain the greatest static and dynamic holding capacity. In stock form or even mildly modified vehicles, this is perfectly suitable; however, when we expose the vehicle to a more demanding environment this can be a weak link.

With our SunCoast 10R80 Valve Body we are decreasing the required pressure to fully engage the regulator to only 80psi. This is a 33% decrease in pressure needed to maximally engage the clutch regulator valve (latch valve) resulting in a quicker shift apply when engaging clutches A, B, C and F. This quicker engagement not only shortens shift times, but it also decreases the heat resonating in the clutch pack, preventing premature degradation and extending clutch life. To improve this shift calibration even more SunCoast is evacuating non-critical oil to increase apply rate.

The factory overall line pressure is modified on this new SunCoast pump/valve body combo. SunCoast is increasing overall main line pressure as much as 60psi. This additional line pressure not only increases maximal clamping force of the individual clutch packs but increases overall pump volume production. To reduce the potential for runaway pressure and the over-compression of clutch fibers, the SunCoast 10R80 Valve Body does have a built-in bypass, dumping excessive pressure above 420psi.

Features and Benefits

  • Increased Line Pressure, as much as 60psi
  • Increased clamping force on all clutch packs
  • 250% Increase in Cooler Charge Pressure
  • Increased Lock-up Apply Pressure
  • 33% Decrease in Maximal Pressure Actuation of Clutch Packs
  • Shortened Shift Times
  • Improved Clutch Wear

The Flex Plate

The new 10-speed platform that resides in the Coyote-powered vehicles, is nothing short of spectacular. Ford has blessed us with a plethora of gears that allow this new Coyote engine to stay exactly where it shines, singing right up top.

It goes without saying that it just seems inherent to human nature not to push what the manufacturer has so graciously given us. As with anything else, if you make it, we find a way to break it.

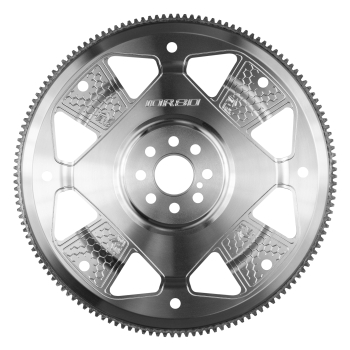

SunCoast is proud to bring to you our new billet 10R80 one-piece solid flexplate. This new 10r80 flexplate is manufactured from 4140 forged billet steel. It features a solid one-piece design with an integrated ring gear that has been heat-treated and oil-quenched for years of reliable service.

This new SunCoast 10R80 flexplate is also almost twice the thickness of the factory unit. This additional thickness and improvement in manufacturing material renders deflection virtually non-existent.

SunCoast has also designed this 10R80 flexplate with twice the bolt holes, allowing you to take advantage of the additional clamping opportunities that come with our SunCoast 10R80 Pro-Loc Bolt-together Converter. These additional clamping points not only ensure zero deflection, but also reduce the chance of shearing in high horsepower applications.

SunCoast engineered this flexplate with a relief ring, which prevents imparting deflection of the crankshaft trigger wheel pulse ring. This deflection of the pulse ring is a known issue in higher RPM applications.

Finally, this new SunCoast billet 10R80 flexplate is SFI-certified to a rating of 29.2. That is over 11,000 RPMs and 1,700 plus horsepower. This billet 10R80 flexplate is the toughest damn thing this side of Bangladesh. We guarantee it.

Features & Benefits:

  • SFI-certified 29.2
  • 4140 forged, billet steel, one-piece construction
  • Clamping doubled when used with SunCoast ProLoc Converter
  • Integrated heat-treated oil-quenched ring gear
  • Thicker construction, reducing deflection
  • Redesigned relief ring, eliminating pulse ring at high RPMs
  • Looks tougher than Chuck Norris's chin
