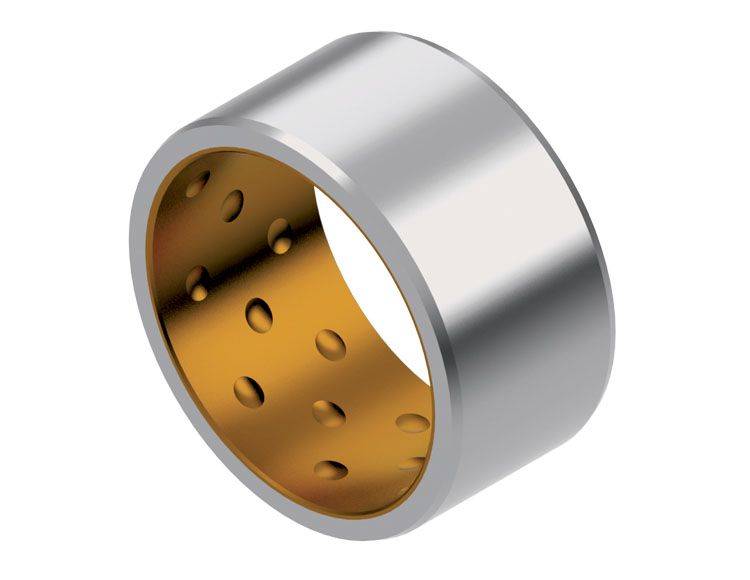

Input/Output Shaft Bushing - Pack of 6
Description
Fits units with .669" (16.98mm) dia. shaft journals only.

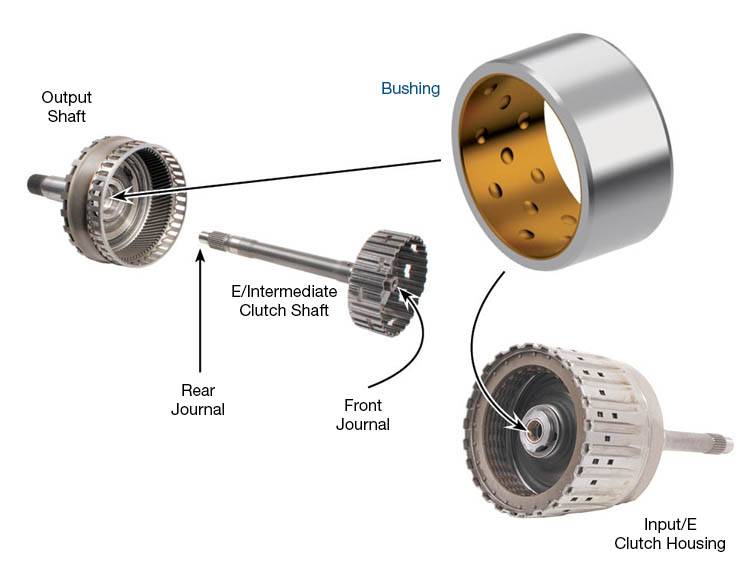

The OE bushings used at the input-to-intermediate shaft and intermediate-to-output shaft in ZF6HP19, ZF6HP26, ZF6HP28 and Ford 6R80 units have a tendency to wear out prematurely due to sub-optimal material composition. This wear can lead to bushing failure, pressure control codes, and loss of correct pressure to the B-clutch. Sonnax input/output shaft bushing 95030-05 features superior wear characteristics, eliminating premature deterioration for worry-free operation. The upgraded material composition outperforms the OE bushing.
- Bushing Style: Precision
- Material: Steel-backed alloy
- Housing Bore: 0.788"
- Shaft Dia.: 0.669"
- Width: 0.393"
- Package Quantity: 6
Symptoms:
- Bushing wear
- Bushing failure
- Ratio codes
- B Clutch burned
Cause:
OE bushing material composition allows premature wear.Correction:
Install improved Sonnax input/output shaft bushings to restore critical clearances and resist untimely wear.Warning:
Use of an arbor press is required for correct installation. Do not use a hydraulic press or a bushing driver/hammer combination to install, as doing so will distort the bushing and cause fitment issues.
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W4.0000” x H4.0000” x L4.0000”
