O-Ringed End Plug Kit
95740-19K
6R100, 6R60, 6R75, 6R80 (2009–2014), 6R80 (2015-Later), ZF6HP19, ZF6HP26, ZF6HP32
Pricing:
$56.58
Description
Fits ZF6HP19/26/32 (Gen. 1) units without 053 separator plate code.
Valves, springs and pressurized fluid repeatedly push on end plugs causing them to deform and wear. As a result critical pressure is lost due to excessive clearance between the plug and bore. The Sonnax O-ring sealed end plug kits for ZF6HP19/26/32 (Gen. 1) and Ford 6R60, 6R75, 6R80, 6R100 units replace the damaged OE end plugs and restore pressure containment to the valve bore. Sonnax O-ringed end plug kit 95740-19K has single O-ring sealed end plugs that service all 12 of the 13mm and 17mm dia. bores.
- Prevent loss of critical pressure
- Replaces all 12 of the 13mm and 17mm dia. end plugs
- Requires no machining or special tools
- Drop-in Zip Valve™ parts install quickly and easily
Kit is NOT compatible with ZF6HP21/28/34 (Gen.2) units. To differentiate between Gen. 1 and Gen. 2 valve bodies, see ZF Identification Guide.

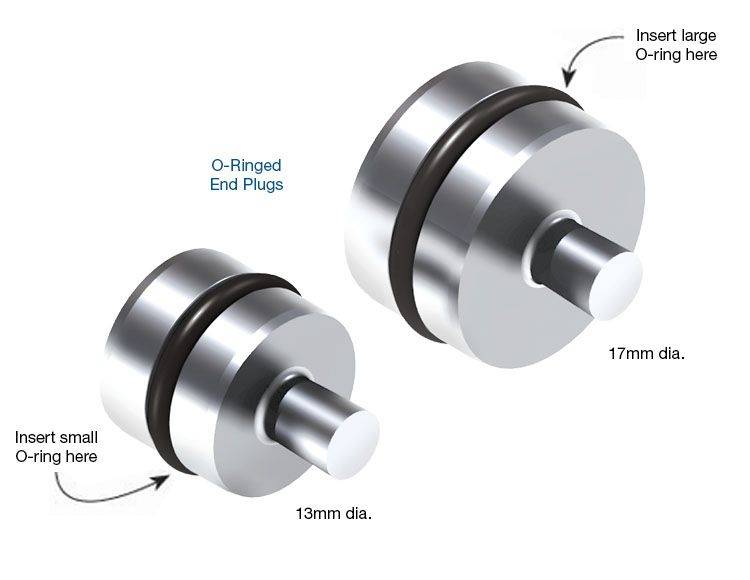

- End Plugs, Large (6) 17mm dia.
- O-Rings, Large (9) 3 Extra
- End Plugs, Small (6) 13mm dia.
- O-Rings, Small (9) 3 Extra
Symptoms:
- Inconsistent shift quality
Cause:
Valves, springs and pressurized fluid repeatedly push on the end plugs causing the plugs to deform and wear. As a result, critical pressure is lost due to excessive clearance between the plug and bore.Correction:
The Sonnax drop-in O-ringed end plugs restore correct circuit pressures. The O-ring provides additional sealing to reduce pressure losses past the end plug.|

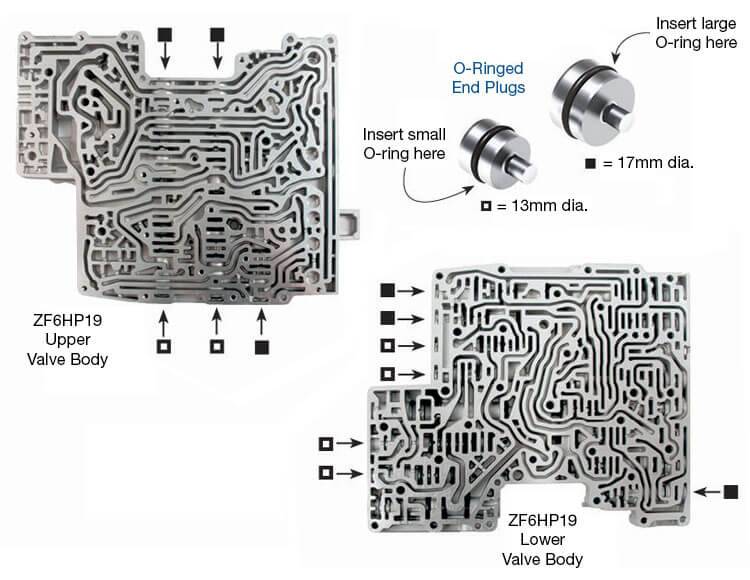

O-Ringed End Plug Location Key |
|||
|---|---|---|---|
| Sonnax Kit | Valve | Location | End Plug Dia. |
| 95740-19K | Clutch A Control Pressure Regulator | Lower Valve Body | 17mm |
| Clutch E Control Pressure Regulator | 17mm | ||
| Clutch E Latch | 13mm | ||
| Bypass Clutch Control Regulator | 13mm | ||
| Converter Release Regulator | 13mm | ||
| Lubrication Control | 13mm | ||
| Delay Accumulator | 17mm | ||
| Clutch D1 Control Pressure Regulator | Upper Valve Body | 17mm | |
| Clutch C Regulator | 17mm | ||
| Clutch D2 Latch | 13mm | ||
| Clutch D2 Regulator | 13mm | ||
| Clutch B Regulator | 17mm | ||
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W4.0000” x H4.0000” x L4.0000”
