Oversized Bypass Clutch Control Valve Kit
95740-13K
6R100, 6R60, 6R75, 6R80 (2009–2014), 6R80 (2015-Later), ZF6HP19, ZF6HP26, ZF6HP32
Pricing:
$64.63
Description
OE valve name: WD-V
Common problems in vehicles equipped with ZF6HP19/26/32 (Gen. 1) and Ford 6R60, 6R80, 6R100 transmissions include torque converter clutch slip, firm shifts and an overheating torque converter. One cause of these problems is a worn bypass clutch control valve resulting in slow apply and release of the torque converter clutch. Installing the Sonnax oversized bypass clutch control valve kit 95740-13K restores factory torque converter clutch apply and release rates. This will resolve the converter slip, harsh shift and overheating problems.
- Hardcoat anodized aluminum valve combats premature wear
- Valve is tighter fit to the bore than OE for better sealing
- Valve has annular grooves for better centering in the bore
Kit is NOT compatible with ZF6HP21/24/34 (Gen.2) units. To differentiate between Gen. 1 and Gen. 2 valve bodies, see ZF Identification Guide.

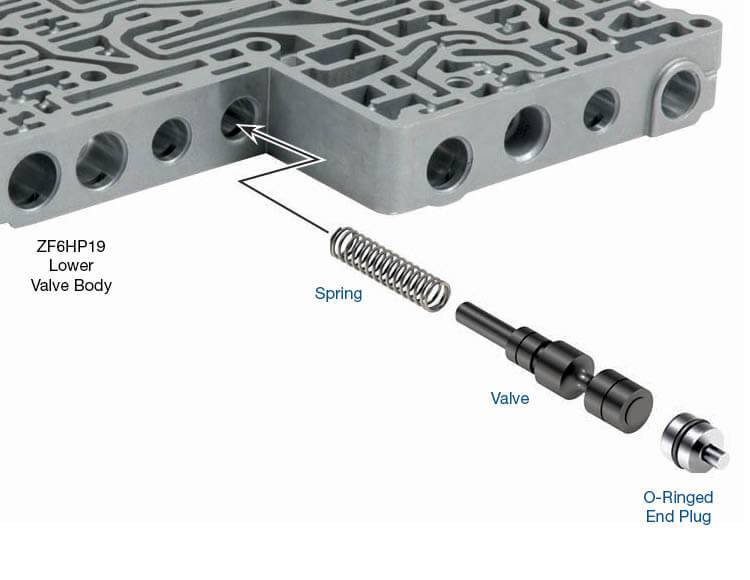

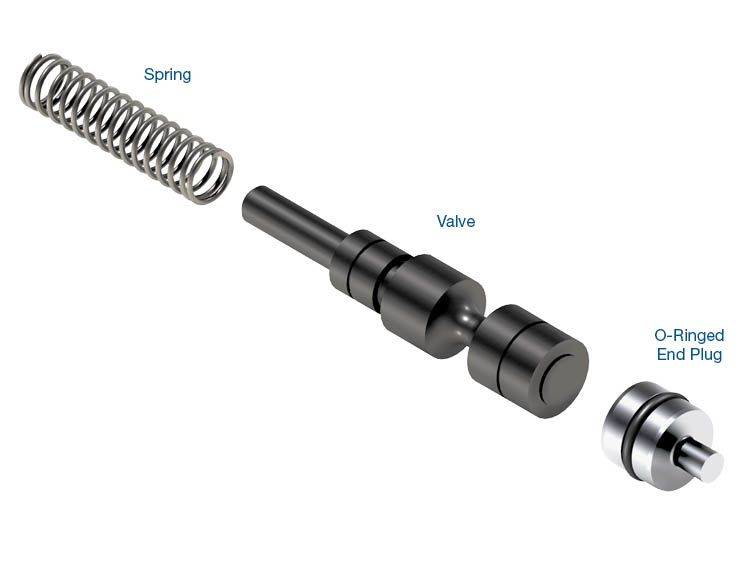

- Valve
- Spring
- O-Ring
- End Plug
Required Parts:
- Reamer F-Tool Kit Part No. F-95740-TL13
Symptoms:
- TCC codes
- Excess TCC slip
- Cycling RPM
- Low TCC release pressure
- Flare shifts
- Harsh shifts
- Rough idle in Reverse
- Overheated converter
Cause:
The bypass clutch control valve controls torque clutch apply and release pressure. As the bore wears, the apply rate of the clutch slows and the clutch release pressure will not vent.Correction:
Ream the bore to restore tolerance and install the upgraded Sonnax oversized bypass clutch control valve kit.Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W4.0000” x H4.0000” x L4.0000”
