Stator Support Shaft Assembly - 280mm or 300mm Converter, Non-Reluctor Style, '99-'04
77918S-1K
4L60-E, 4L65-E, 4L70-E
Pricing:
$144.23
Description
280mm or 300mm Converter, non-reluctor style, '99-'04

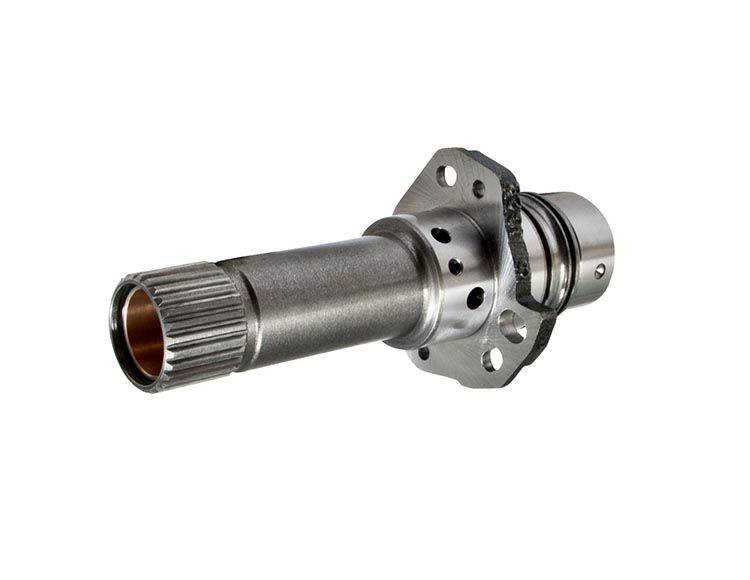

Sonnax stator support shaft assembly 77918S-1K for GM 4L60-E, 4L65-E and 4L70-E transmissions eliminates sleeve rotation by mechanically fastening the sleeve in place with a set screw, further securing the sleeve in place with Loctite®. The assembly is 100% leak tested by Sonnax to ensure a secure seal. Shafts have slotted bolt holes for easy alignment during installation.

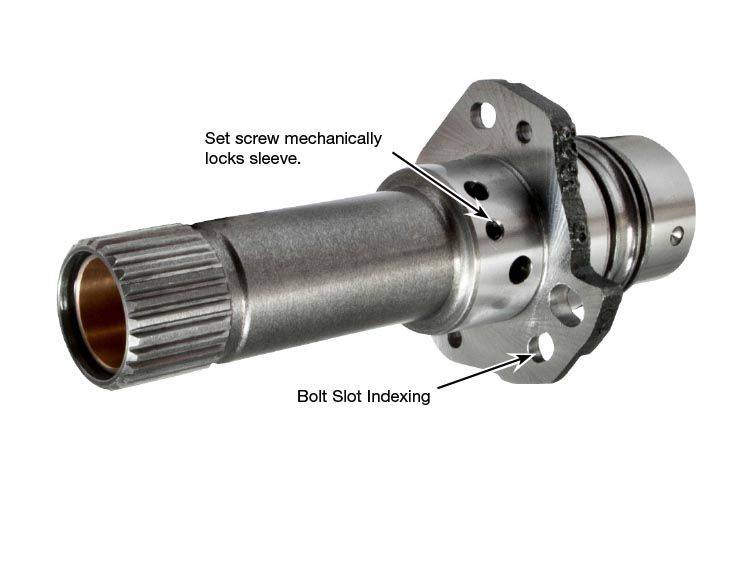

- Set screw and Loctite eliminate sleeve rotation
- Slotted bolt holes for easy installation
- No machining required
- Bushings installed
- Stator Support Shaft with Bushings Installed 7.300" Long
Symptoms:
- 3-4 Clutch failure
- Code 894, 1870
- Overheated converter
- No 3rd
- Delayed Reverse
Cause:
Overheating and manufacturing flaws cause sleeve rotation and block oil flow, which leads to transmission failure.Correction:
Replace worn or damaged stator shaft with Sonnax stator support shaft assembly.Details
- 77918S-1K
- 77918S-1K
- Sonnax
- New
Categories
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W10.0000” x H10.0000” x L10.0000”
