Category 1 SunCoast 450HP 47RE Transmission with Torque Converter

(0) Reviews: Write first review

SKU: SC-47RECAT1

Pricing: $6,100.00

Customize Your Item

Add SunCoast Fully Synthetic Transmission Fluid?

--Please Select--

- --Please Select-- -

Refundable Core Charge: $2,500.00

Qty:

Description
Details
Shipping
Reviews

Description

This Transmission Includes the Following:

Custom calibrated lab tested valve body
High flow 47RE filter
New front pump bushing
Pro series Carbon Fiber band
New Thrust washers
New Torrington Thrust Bearings
Suncoast billet accumalator piston
Suncoast billet intermediate servo
Suncoast custom ratio billet band lever
Suncoast billet band strut
Suncoast billet band anchor
New overdrive and lockup solenoids
Upgraded governor solenoid
SunCoast billet single-disc torque converter

This new SunCoast 47RE transmission is rated at 450HP. This is a perfect upgrade for someone towing and hauling or who has a slightly modified vehicle.

There are several key components in this transmission that are upgraded to not only improve performance, but also restore hydraulic integrity.

The factory accumulator piston, being plastic, deteriorates over time, causing it to crack or simply break in many pieces. It is also not uncommon to see this accumulator piston cross-leak within the bore, which is the reason we engineered this piston to be a four-ring sealing piston, versus the factory two-ring. It is standard in all of our units to replace this factory piston with our improved billet piston to not only restore hydraulic integrity but to improve reliability, as well.

To alleviate the issues with the factory intermediate band circuit, we address many facets of the all-too-common second gear band burn-ups on the 47RE Transmission - the first facet being the servo that applies the intermediate band itself. We replace the factory cast servo with a larger billet servo that has more apply pressure and improved release. This servo also is improved to a four-ring servo, versus the factory two-ring, with the primary sealing ring being square-cut teflon and the secondary being an o-ring.

To continue with the upgrades to the band circuit, we add a billet band anchor, billet band strut, and a billet apply lever. The band is a further upgraded to a pro-series, carbon graphite band to improve friction performance.

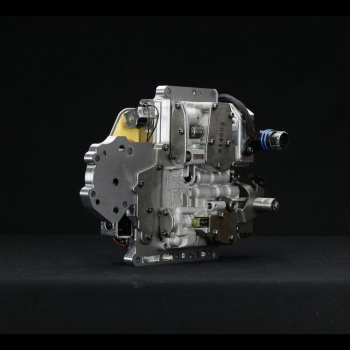

The valve body and pump are also recalibrated, and the separator plate is replaced with a new laser-cut, SunCoast-proprietary plate. This allows not only for more optimal line pressure, but also increased volume. Each one of these valve bodies and pumps is custom built for the customer's individual needs, whether it be towing, street performance or the track.

The Suncoast 47RE transmission also comes with new overdrive and lockup solenoids. The governor pressure sensor (transducer) is also replaced with a new one. In addition, all new 47RE transmissions get upgraded with the DNJ billet solenoid housing and upgraded governor solenoid.

The billet torque converter that comes with this new Suncoast 47RE transmission is lined with carbon graphite clutch material and is equipped with a precision-CNC-machined, forged billet apply piston to ensure no deflection occurs. The in conjunction with our billet cover ensures many years of performance.

Warranty: 3 Year Unlimited Mile
