Oversized Pressure Regulator & Boost Valve Kit

GM 6L45, 6L50, 6L80 and 6L90 units may exhibit multiple line pressure and cooler/converter/lube flow problems due to excess wear in the pressure regulator bore. Deterioration at the balance spool end allows critical fluid loss, resulting in high line pressure, harsh shifts, and overheating due to reduced cooler/converter flow. Wear at the outboard spool robs converter feed pressure and lowers line pressure, resulting in soft shifts and burnt clutches.

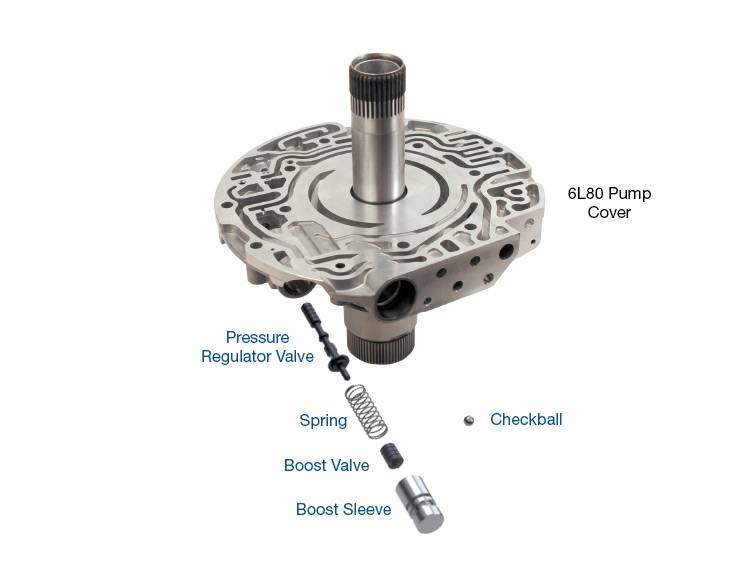

Reconditioning the bore and installing Sonnax oversized pressure regulator and boost valve kit 104520-16K re-establishes the hydraulic integrity of these circuits for proper line pressure control in all ranges.

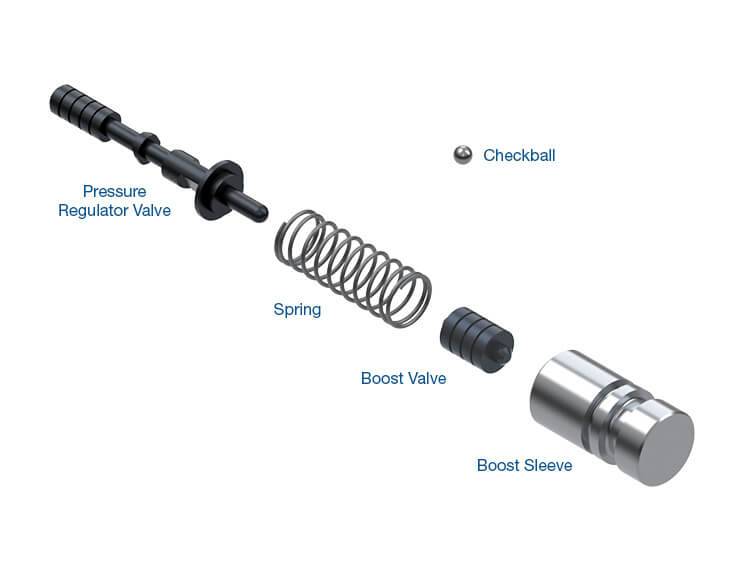

• Oversized pressure regulator valve and matched spring restore OE function
• Annular grooves help center valves in bore to reduce future side-load wear
• Hardcoat anodized aluminum valves combat premature wear
• No pump drilling required
