Oversized Low/Reverse Switch Checkball Sleeve Kit
92835-45K
68RFE, 66RFE, 65RFE, 545RFE, 45RFE
Pricing:
$26.38
Description
Chrysler 45RFE, 545RFE, 65RFE, 66RFE and 68RFE transmissions commonly exhibit wear in the low/reverse bore. This issue stems from the valve getting side-loaded due to the length of the valve being dimensionally close to its diameter. As wear progresses, hydraulic fluid cross leaks to other circuits and results in the loss of apply pressure to the low/reverse clutch. This leads to burnt low/reverse clutch, delayed/no Reverse, and no engine breaking when in Low.

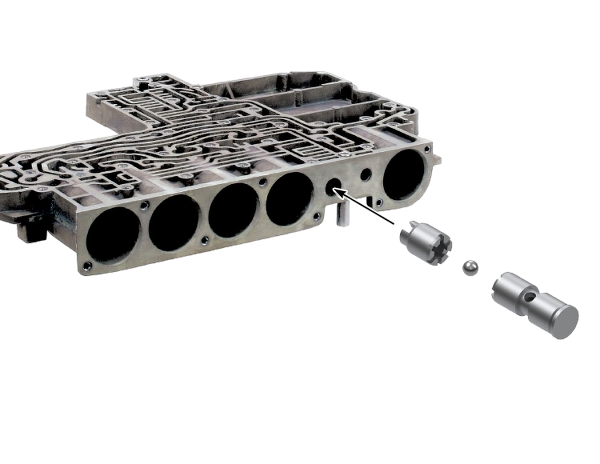

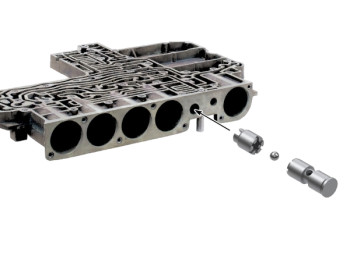

Reconditioning the bore and installing Sonnax oversized low/reverse switch checkball sleeve kit 92835-45K restores hydraulic integrity to re-establish normal shift operation and prevents premature wear.

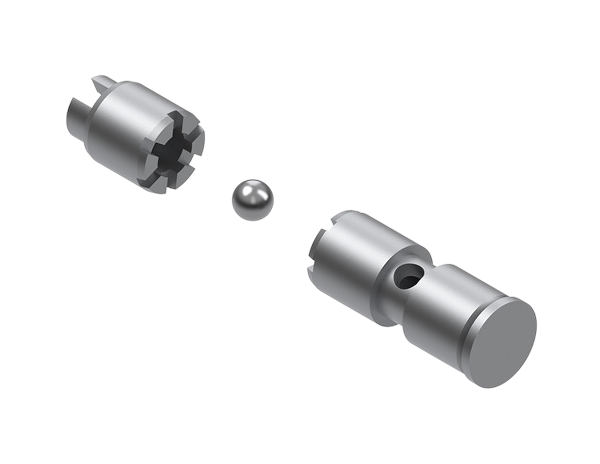

- Steel sleeve allows checkball to operate in unworn bore
- Improved design combats premature wear
- Outboard Sleeve
- Inboard Sleeve
- Checkballs (2) 1 Extra
Required Parts:
- Reamer Tool Kit - Part No. F-92835-TL45
Symptoms:
- Burnt Low/Reverse clutch
- Delayed Reverse
- No Reverse
Cause:
Bore wear due to side loading allows critical hydraulic oil to cross leak, resulting in loss of apply pressure.Correction:
Restore hydraulic control and prevent premature wear by reconditioning the bore and installing Sonnax oversized low/reverse switch checkball sleeve kit.Details
- 92835-45K
- 92835-45K
- Sonnax
- New
Categories
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W4.0000” x H4.0000” x L4.0000”
