Suncoast Loaded 68RFE Overdrive Drum Assembly

Eliminate the Weak Link. Upgrade the Entire System.

Dodge trucks equipped with Chrysler RFE transmissions are well known for one critical failure point—overdrive clutch failure caused by wear in the inner retainer housing.

Over time, the OE aluminum retainer wears in the clutch contact area, allowing the clutches to drag. This directly affects clutch apply and release, leading to heat buildup, glazing, and eventual failure.

Under towing, increased power, or aggressive use, this problem accelerates.

At Suncoast, we don’t just address the symptom—we eliminate the root cause.

Complete Drop-In Solution — No Guesswork

This Loaded 68RFE Overdrive Drum Assembly is a fully assembled, drop-in upgrade designed to replace the most failure-prone section of the transmission with a system engineered for durability, consistency, and performance.

Every component is purpose-built—and more importantly, engineered to work together.

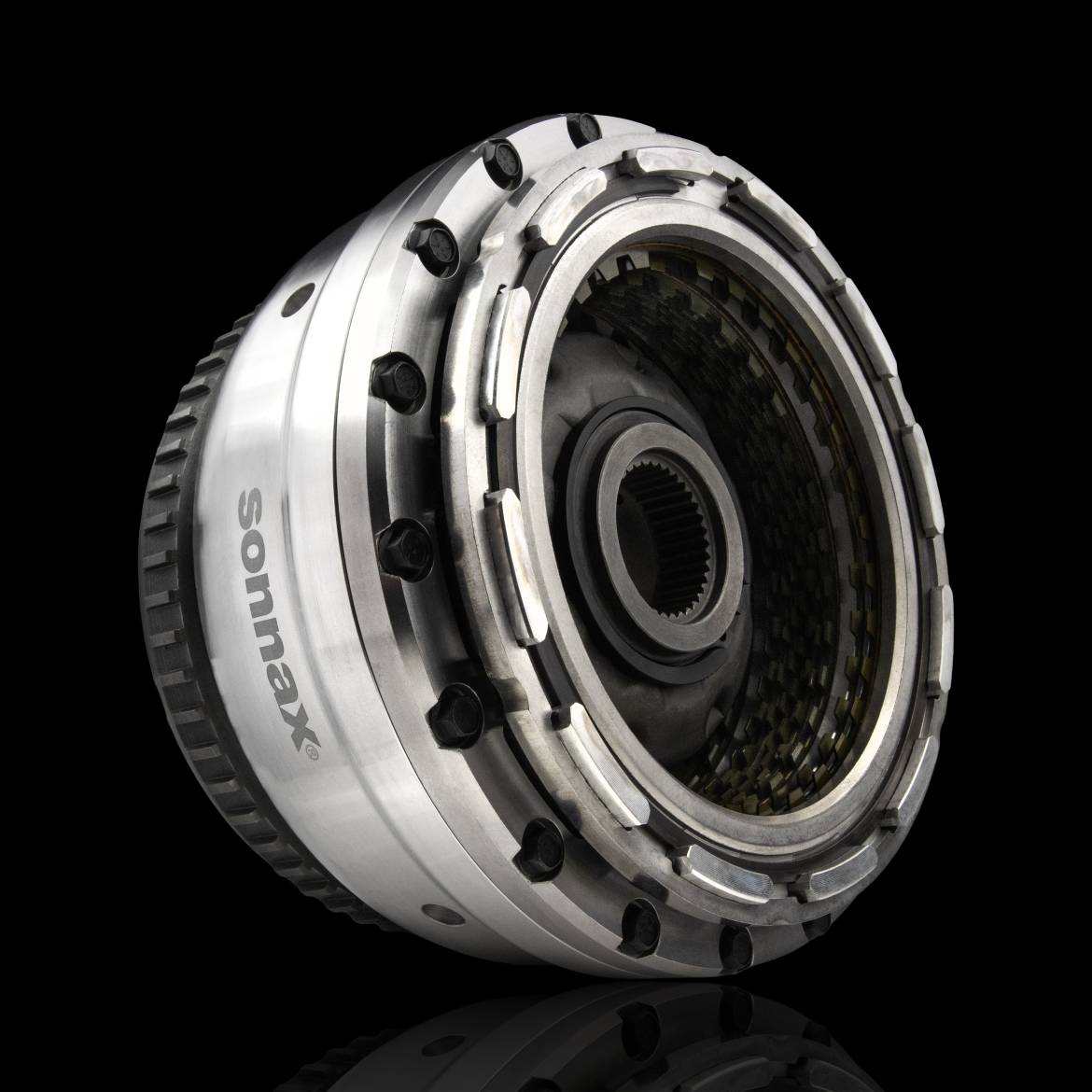

Sonnax Smart-Tech Overdrive Drum — Zero Deflection Foundation

Everything starts here. The Sonnax Smart-Tech drum replaces the weak OE stamped design with a rigid, bolt-on apply plate system that eliminates deflection at the source.

Deflection is the root cause of uneven clutch loading, localized heat, and accelerated wear. Remove deflection, and you stabilize the entire system.

What that delivers:

• Flat, stable apply surface under load
• Even clutch loading across all friction surfaces
• Reduced heat concentration and glazing
• Maximum hydraulic apply efficiency

This is the foundation that allows the entire clutch system to perform consistently under real-world load.

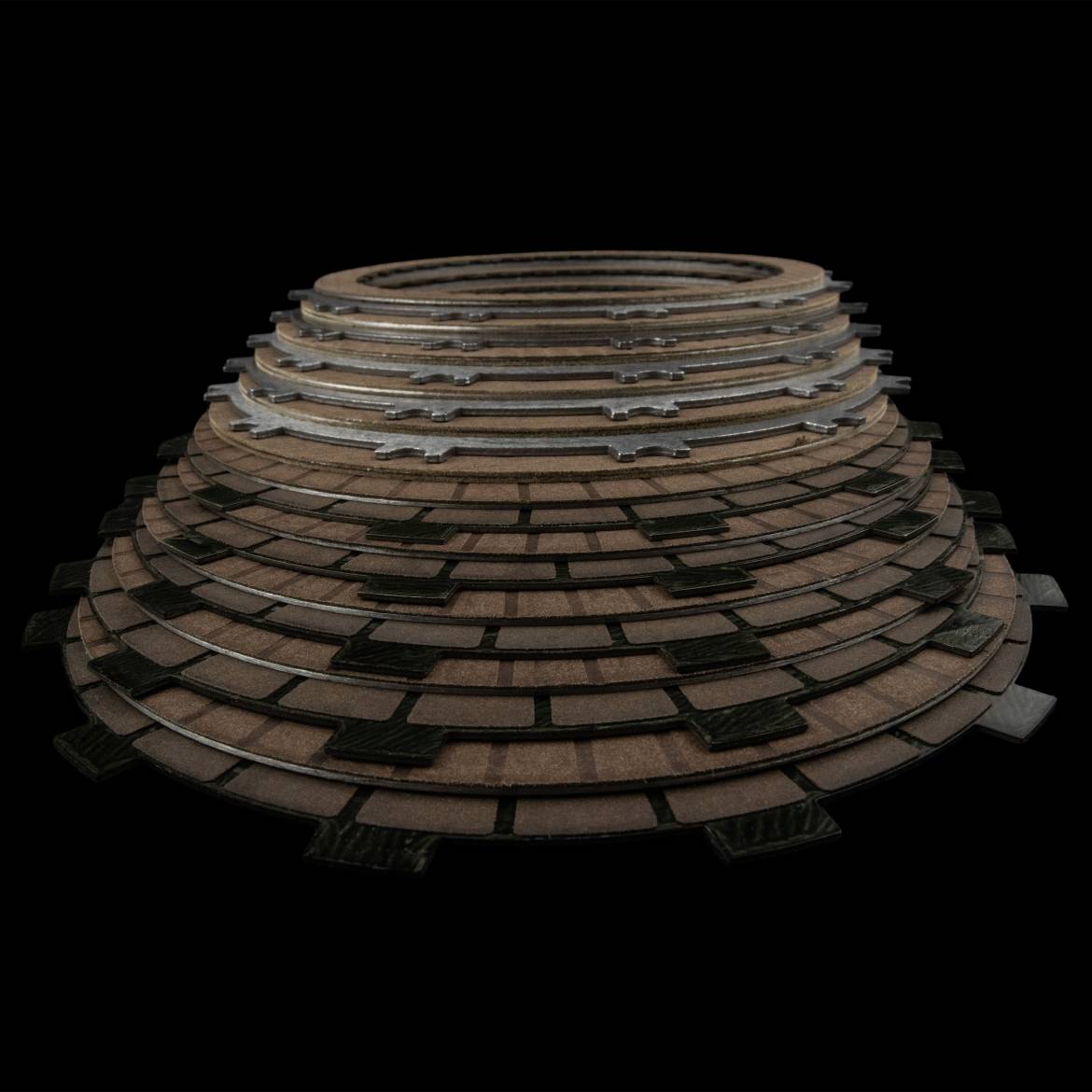

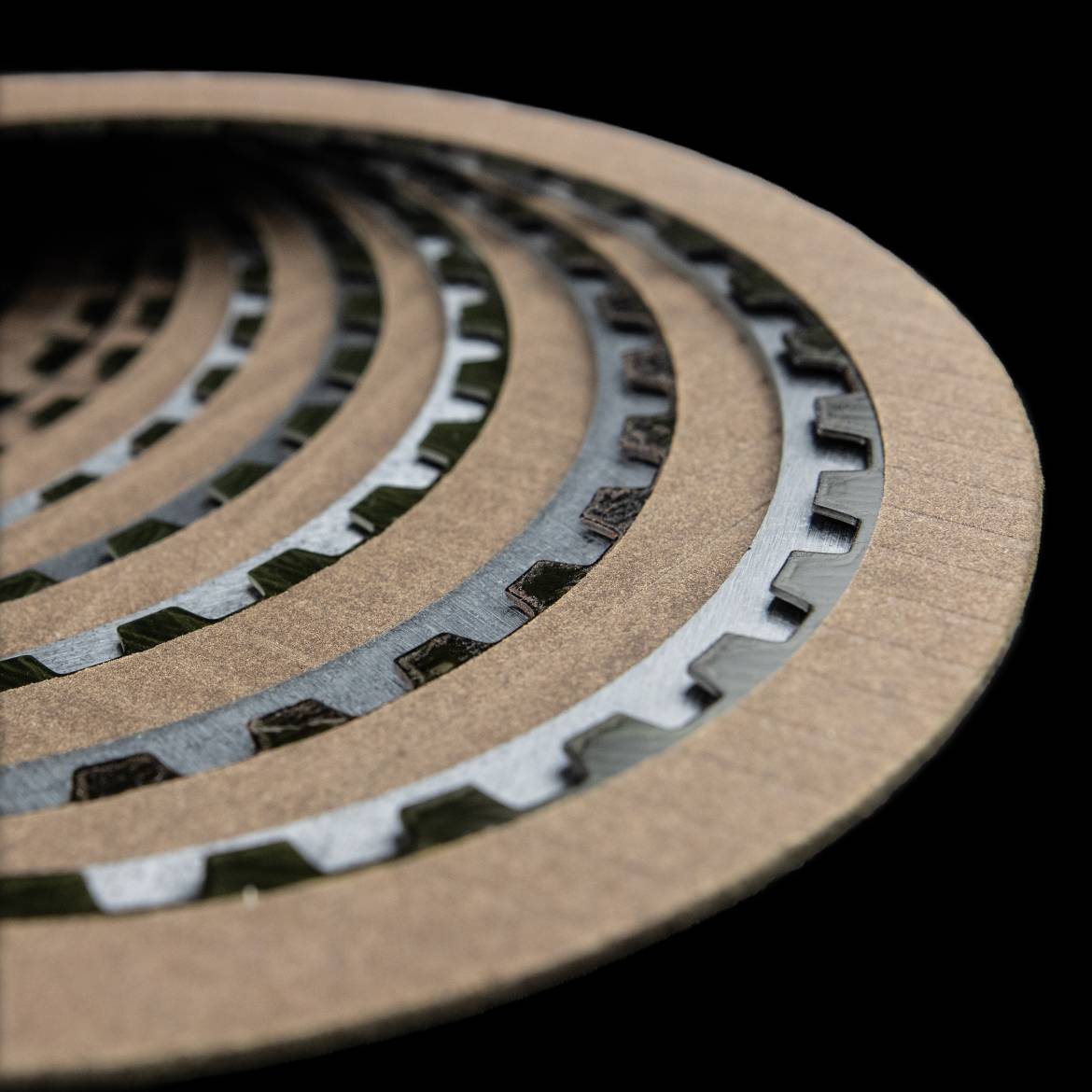

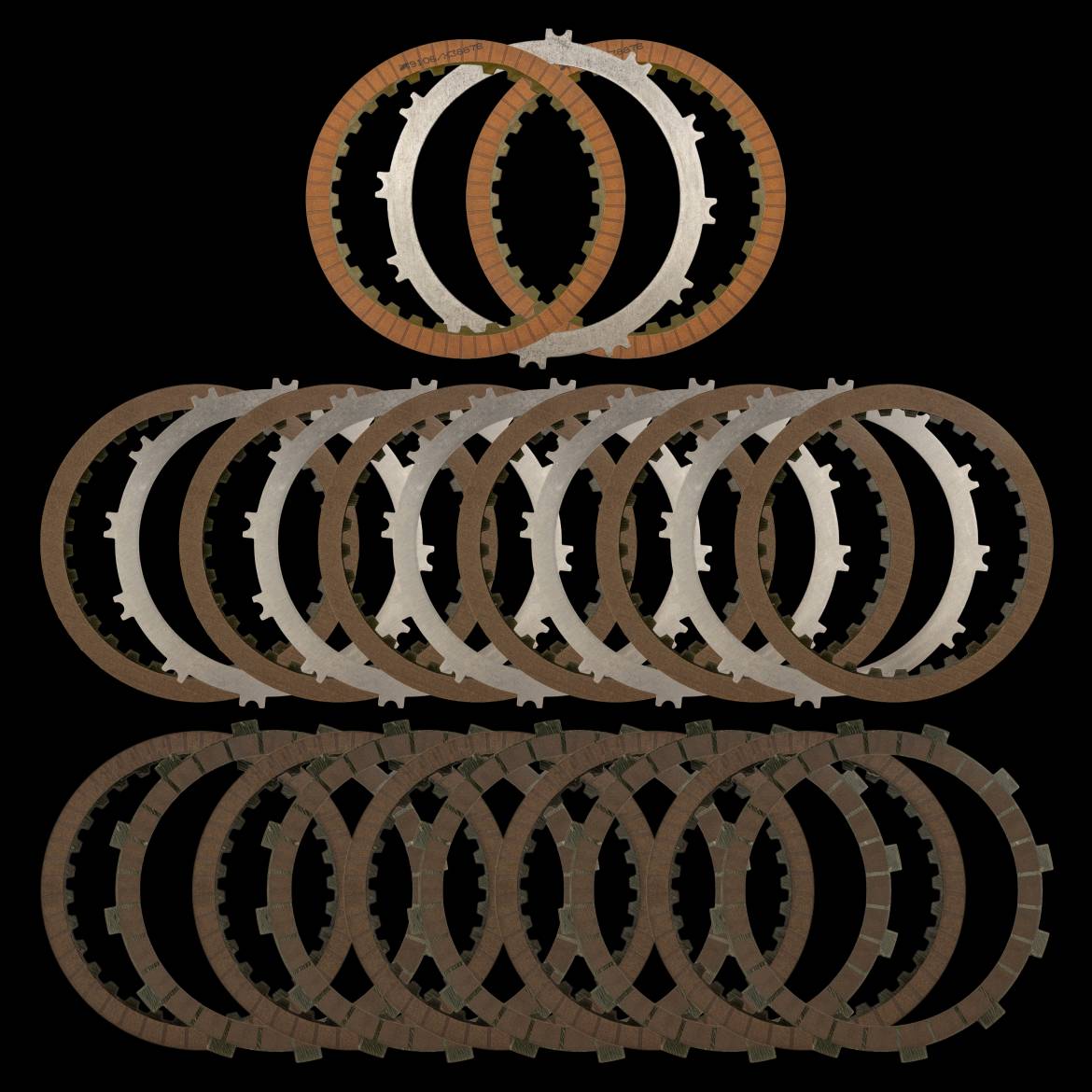

Alto G3 Clutches — More Capacity. Smarter Material. Real Holding Power.

This assembly is equipped with Alto High Performance G3 clutches, increasing capacity to 16 total friction surfaces while significantly upgrading friction performance.

G3 material is engineered for extreme environments and outperforms traditional friction materials in both holding power and heat management.

Performance advantages:

• Increased torque holding capacity
• Superior resistance to heat and thermal breakdown
• Faster, more consistent clutch engagement
• Reduced glazing and longer service life

The result is a clutch pack that applies harder, runs cooler, and survives longer under load.

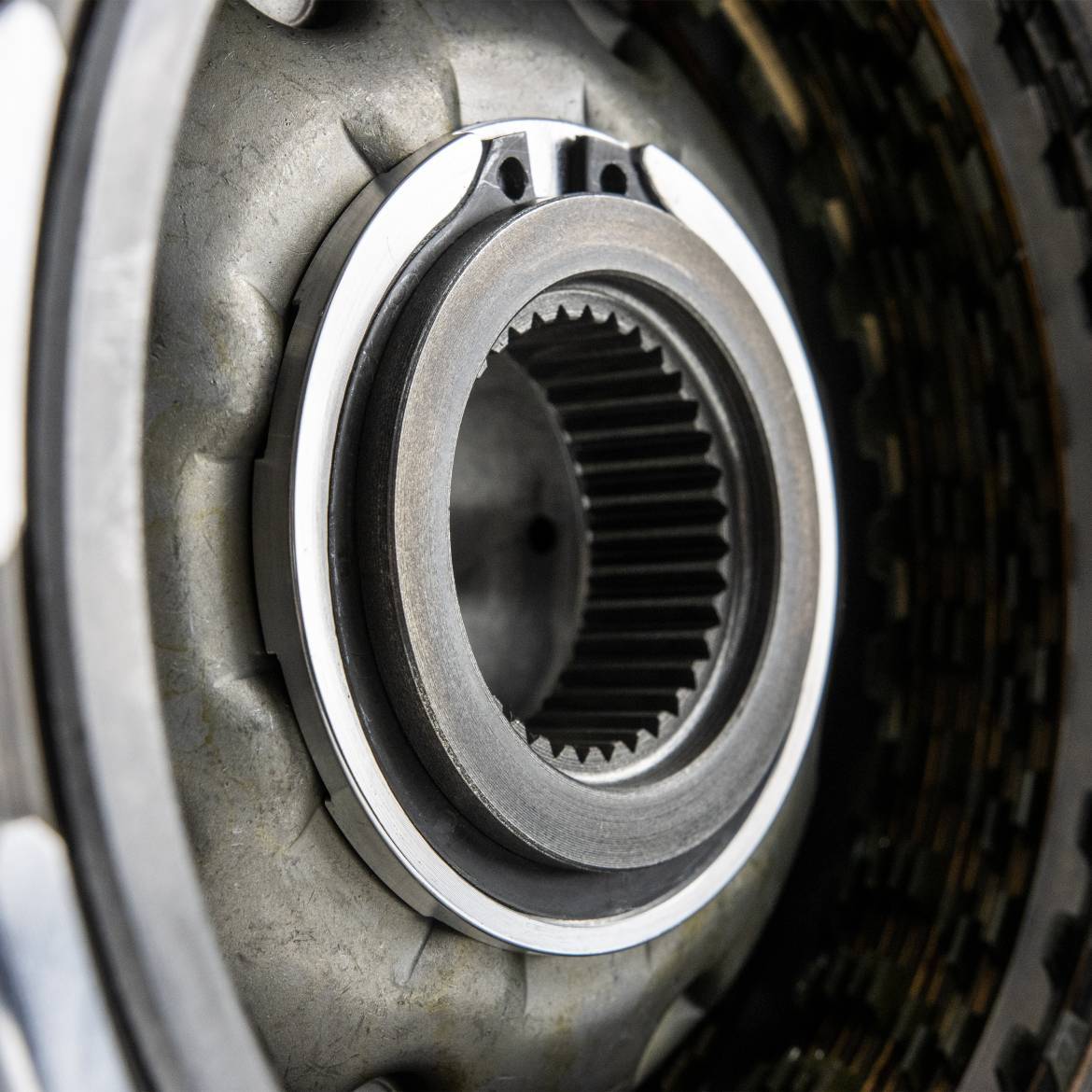

Sonnax 72554-11K — Eliminating Retainer Wear at the Source

The Sonnax 72554-11K inner retainer housing kit addresses one of the most overlooked—but most destructive—failure points in the 68RFE.

The OE aluminum retainer is prone to wear in the overdrive clutch contact area. As this wear develops, clutch drag increases, apply and release timing becomes inconsistent, and heat rapidly builds—leading to premature failure.

The 72554-11K eliminates this issue by utilizing a remanufactured OE retainer upgraded with hardened steel inserts in the critical wear zones.

Key advantages:

• Hardened steel inserts prevent wear in the overdrive clutch area
• Maintains proper clutch clearance and release over time
• Eliminates clutch drag caused by worn aluminum surfaces
• Extends service life of both clutches and apply components

Unlike billet aluminum retainers—which still wear—or full steel retainers—which add excessive weight and stress internal components—this hybrid design delivers the ideal balance of durability and system compatibility.

It is fully compatible with both OE and Sonnax Smart-Tech overdrive drum configurations, ensuring seamless integration into this assembly.

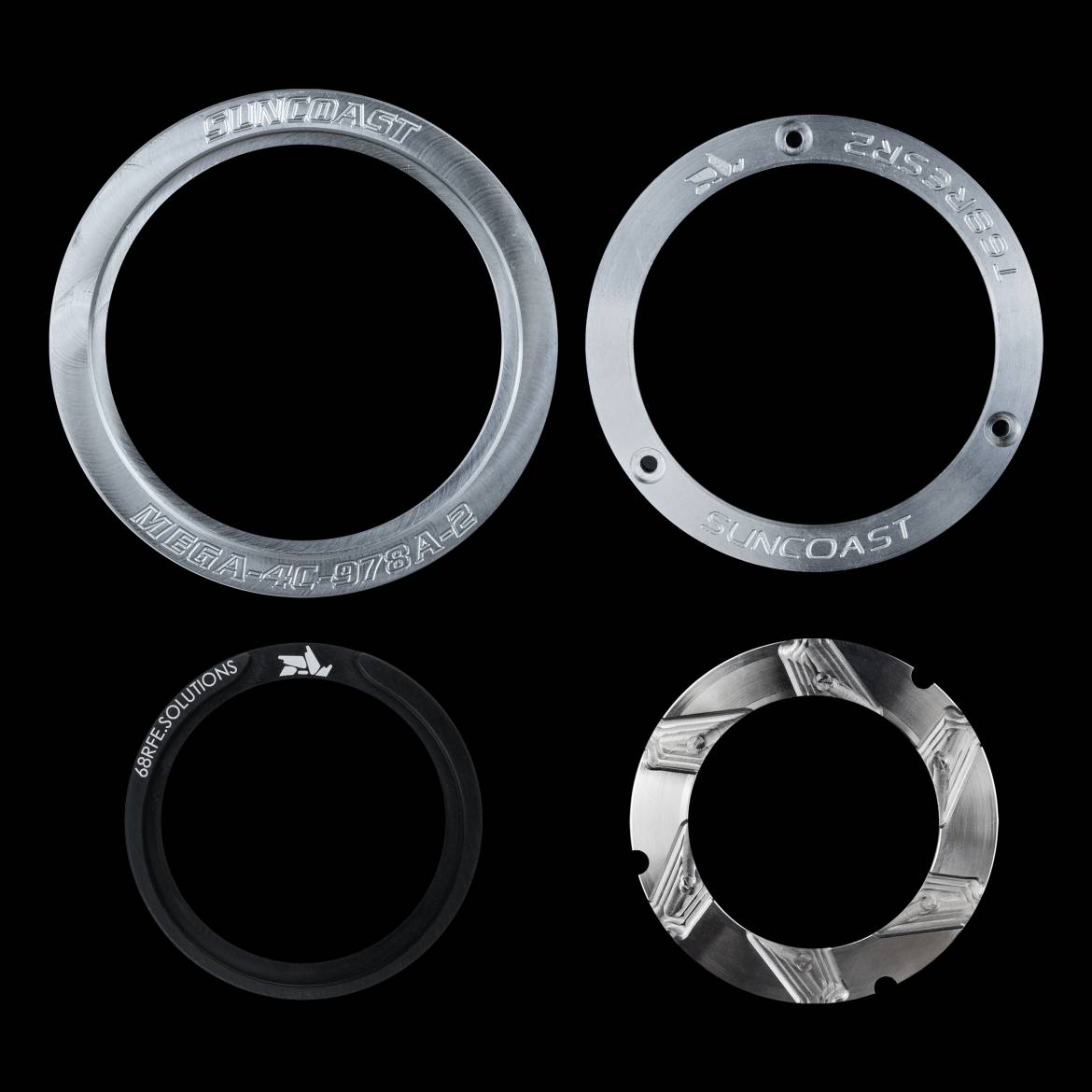

Suncoast SRRS — Lock It Down Under Load

The factory snap ring system was never designed to handle increased load. It flexes, wears, and eventually loses retention—leading to clutch pack instability and failure.

The Suncoast Snap Ring Retention System (SRRS) eliminates that risk entirely.

Machined from billet T-6061 aluminum, the SRRS reinforces the clutch pack and prevents any movement under extreme load conditions.

What that means:

• Positive snap ring retention with zero walk-out
• Elimination of groove distortion
• Maintained clutch stack integrity under load
• Increased structural rigidity throughout the assembly

When the system is under pressure, this is what keeps everything locked in place.

The Synergistic Effect — Engineered as a Complete System

This assembly isn’t just upgraded—it’s engineered to function as a fully integrated system, where each component enhances the performance of the next.

• The Smart-Tech drum eliminates deflection
• The Alto G3 clutches increase holding power and resist heat
• The 72554-11K prevents retainer wear and maintains clutch clearance
• The SRRS locks the entire assembly together under load

The combined result:

• Immediate, consistent clutch apply
• Controlled release with zero drag
• Increased torque capacity and load handling
• Dramatically improved heat management
• Elimination of internal wear points and instability
• Longer service life across the entire system

Instead of multiple failure points compounding each other, this system removes them—creating a balanced, durable, high-performance overdrive assembly built to handle real-world stress.

Built In-House. Proven Under Pressure.

Every unit is assembled in-house at our Fort Walton Beach, Florida facility using strict quality control and precision machining standards.

This is not theoretical performance—this is real-world durability, proven in towing, daily driving, and high-horsepower applications.

Upgrade with Confidence

If you’re ready to eliminate overdrive failure at its source and replace it with a system engineered to handle it—

This is the solution.

Suncoast Loaded 68RFE Overdrive Drum Assembly
Drop-In Strength. Engineered Precision. Proven Performance.
