Stator Support Shaft Kit - 245mm or 298mm Converter, Non-Reluctor Style
77918S-K
4L60, 4L60-E
Pricing:
$154.83
Description
245mm or 298mm Converter, non-reluctor style, universal bolt pattern

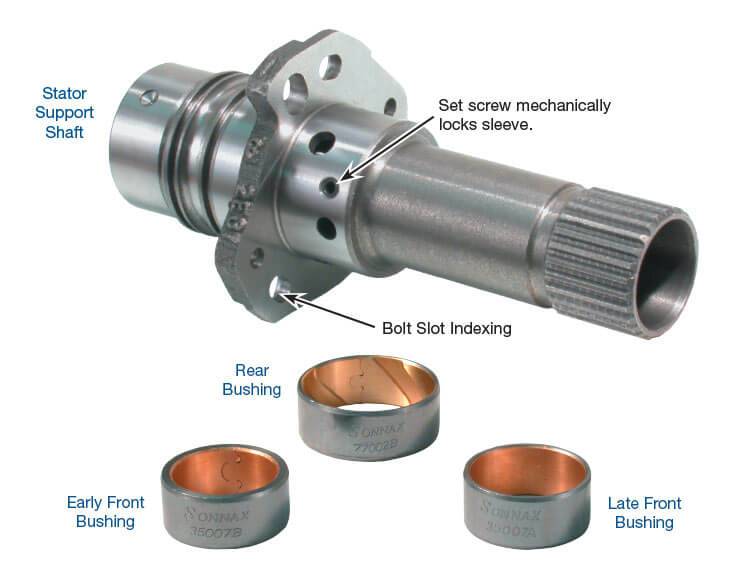

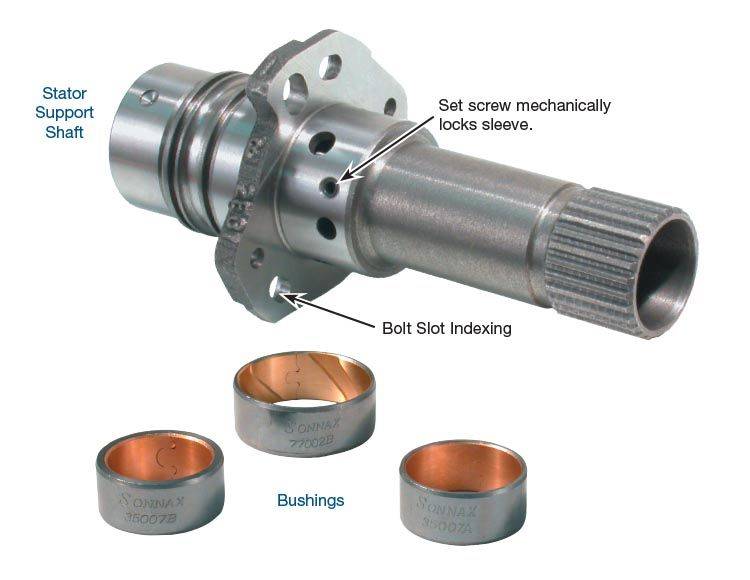

Sonnax stator support shaft 77918S-K kit for GM 4L60 and 4L60-E units eliminates sleeve rotation by mechanically fastening the sleeve in place with a set screw, further securing the sleeve in place with Loctite®. The assembly is 100% leak tested by Sonnax to ensure a secure seal. Shafts have slotted bolt holes for easy alignment during installation.
- Set screw and Loctite eliminate sleeve rotation
- Slotted bolt holes for easy installation
- No machining required
- Bushings installed
- Stator Support Shaft 6.830" Long
- Bushings (3)
Symptoms:
- Overheated converter
- Worn splines
- TCC apply & release concerns
Cause:
Overheating and manufacturing flaws cause sleeve rotation and block oil flow, which leads to transmission failure.Correction:
Replace worn or damaged stator shaft with Sonnax stator support shaft kit.Details
- 77918S-K
- 77918S-K
- Sonnax
- New
Categories
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W10.0000” x H10.0000” x L10.0000”
