Thermal Bypass Eliminator Kit
72760-02K
42RLE, 45RFE, 545RFE, 68RFE, 722.6, JF011E (RE0F10A)
Pricing:
$133.78
Description

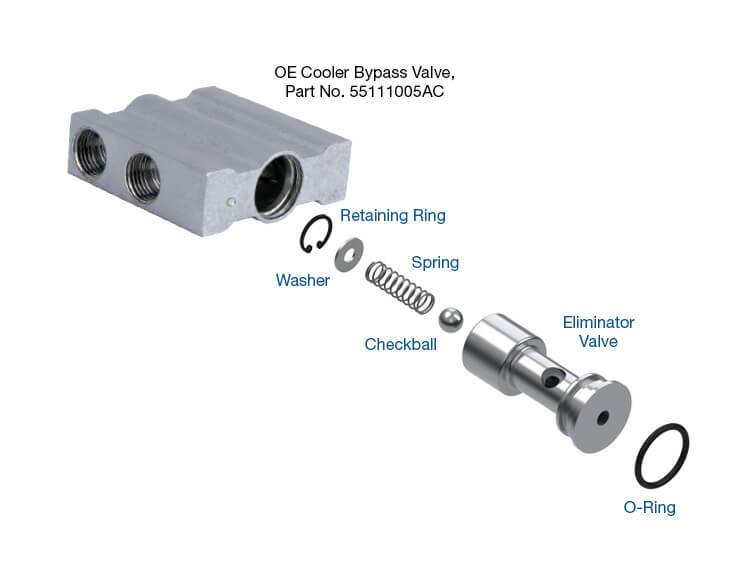

For use in OE part numbers 55111005AC and 68192000AA.

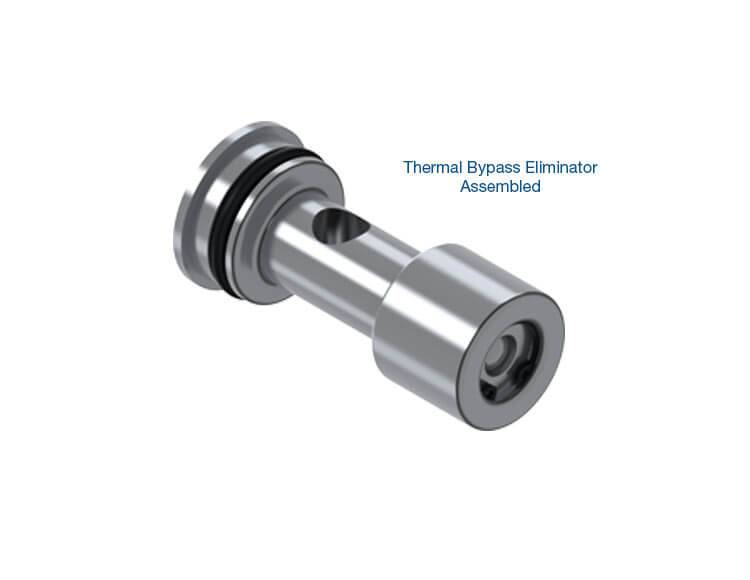

The OE thermal bypass valve in listed transmissions is known to get stuck in recirculation mode, only allowing ATF to circulate in the transmission and not allowing flow through the cooler. As the vehicle gets up to operating temperature, this can result in transmission overheat. Sonnax thermal bypass eliminator kit 72760-02K allows reuse of the OE cooler bypass valve by removing the OE thermal bypass valve and replacing it with a valve assembly that permanently allows flow through the cooler to prevent transmission overheat. The Sonnax design includes a pressure bypass feature that allows for bypass if the cooler is blocked, also preventing transmission failure.
- Drop-in Zip Valve™ parts install quickly and easily into OE cooler bypass valve
- Maintains the OE functionality of pressure relief to prevent transmission failure due to high pressure or cooler blockage
- Less expensive solution than replacing the OE cooler bypass valve

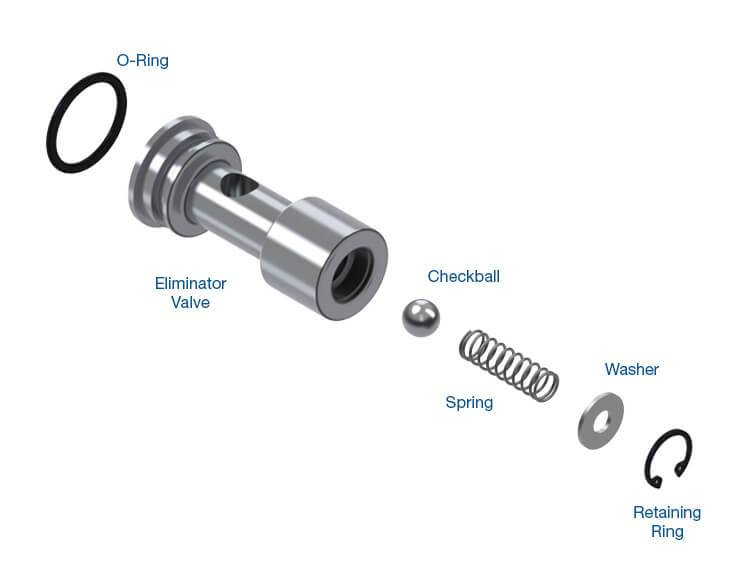

- Retaining Ring
- Washer
- Spring
- Checkball
- Eliminator Valve
- O-Ring
Symptoms:
- Overheating
- Overheated fluid
Cause:
The OE thermal bypass valve can become stuck in the cooler bypass position which causes hot fluid to circulate in the transmission leading to overheating.Correction:
Removing the OE thermal bypass valve and replacing with drop-in Sonnax thermal bypass eliminator kit ensures fluid always circulates through the cooler and keeps temps down. This maintains the pressure bypass to protect the transmission in the event of cooler blockage.Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W4.0000” x H4.0000” x L4.0000”
