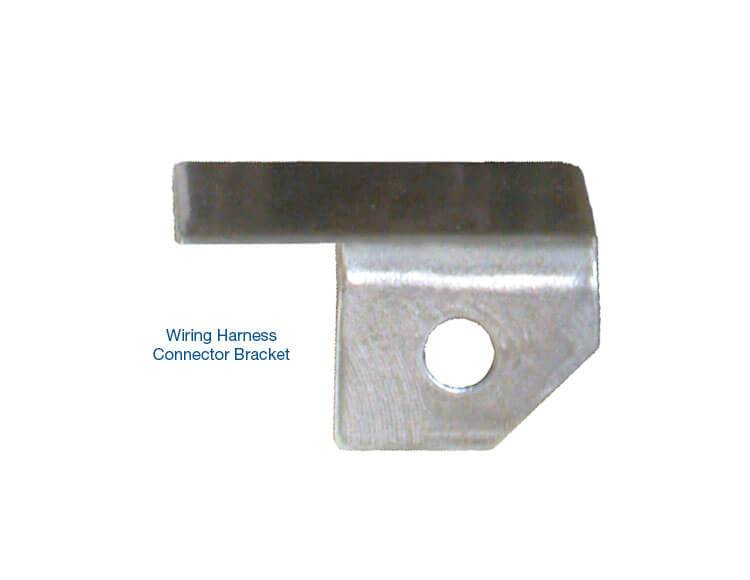

Wiring Harness Connector Bracket

(0) Reviews: Write first review
77980-01K
4L60-E, 4L65-E, 4L70-E
Pricing: $4.83

Customize Your Item

- PLEASE SELECT -
 * required
Qty:

Description

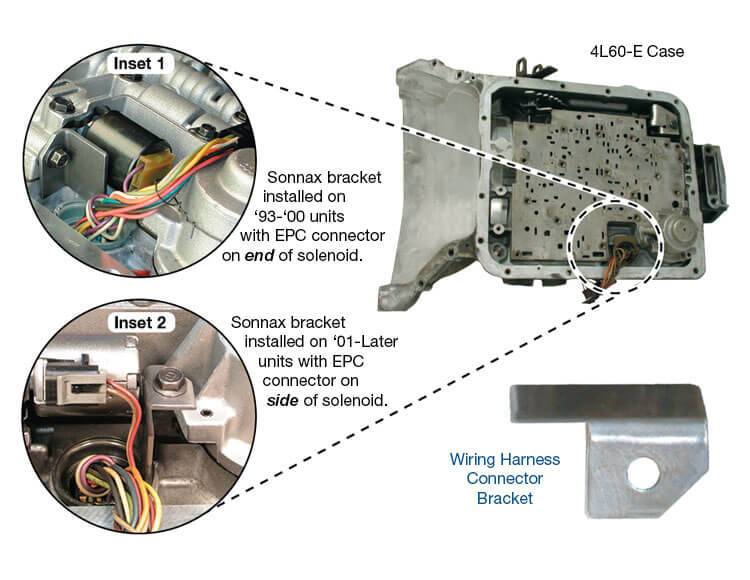

It is common for one of the three plastic retention tabs to break on the wiring harness case pass-through connector in GM 4L60-E, 4L65-E and 4L70-E units. This allows the connector to be pushed into the case when connecting the external harness. Not only does this require extra labor to fix, it also requires a new wiring harness. Sonnax wiring harness connector bracket 77980-01K retains the internal harness connector even though the retention tabs may be broken.



  • Bracket firmly holds the connector in place from inside the pan using existing hardware
  • Connector bracket saves expensive wiring harness replacement.



Symptoms:

  • Retention tabs break off wiring harness connector
  • Connector pushed into pan area



Cause:

The plastic retention tabs that hold the wiring harness connector in place are easily broken. Once broken, the connector may push into the case.


Correction:

Sonnax wiring harness connector bracket positively supports the connector and prevents it from pushing into the case even if the plastic retention tabs are broken.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W4.0000” x H4.0000” x L4.0000”
  • $15.00
