Heavy Duty Planetary Rebuild Kit
28922-01HDK
Powerglide
Pricing:
$391.55
Description
For 1.76-style planetary
Sonnax offers heavy duty planetary rebuild kit 28922-01HDK, which includes several heavy duty components and all the parts needed to rebuild or refresh a 1.76-style planetary, including Sonnax 1.80 and 1.69 ratio carriers. This kit is a substantial upgrade for greater reliability, wear resistance and longer service life in the Powerglide planetary.
- Tabbed and Figure-8 thrust washers feature steel-backed bimetal for improved strength and a PTFE lining for high wear resistance
- Figure-8 thrust washers have a wider web for increased strength
- Rear sun gear thrust washer incorporates an enclosed thrust bearing within the thrust washer that eliminates compression and distortion of the standard thrust washer due to input shaft thrust loads
- Hardened retainer plate
When using rear sun gears other than Sonnax current production, machining may be required to allow clearance for bearing.

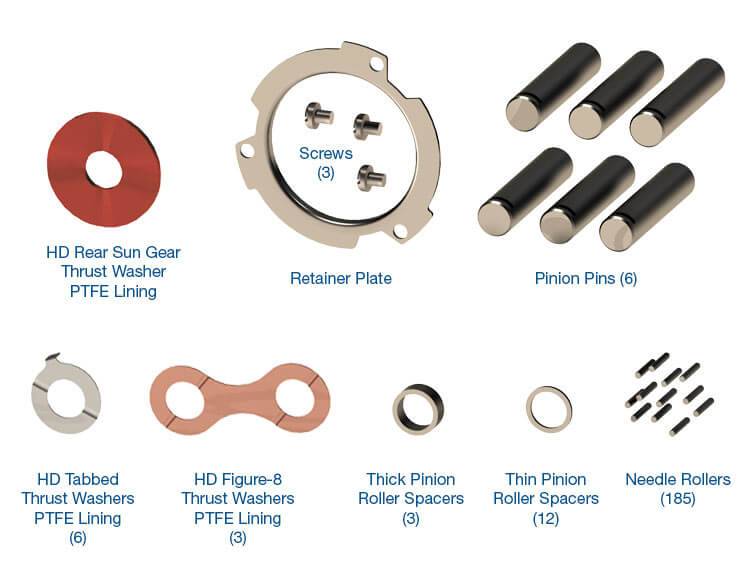

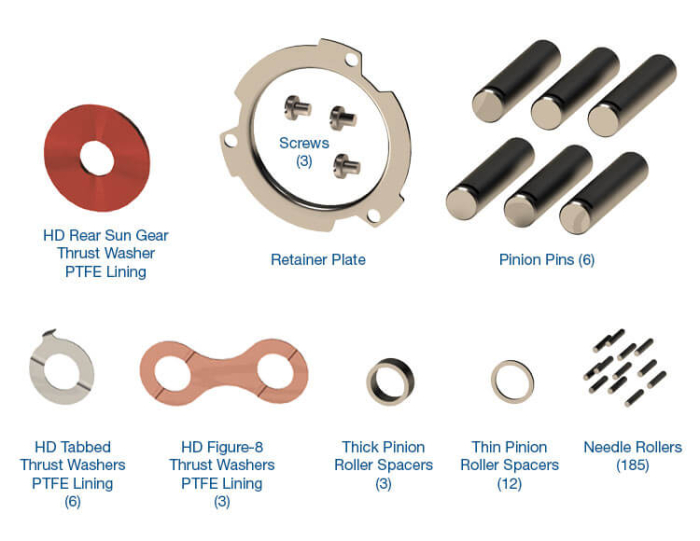

- Pinion Pins (6)
- Needle Rollers (185)
- Thick Pinion Roller Spacers (3)
- Thin Pinion Roller Spacers (12)
- HD Figure-8 Thrust Washers (3) PTFE Lined
- HD Tabbed Thrust Washers (6) PTFE Lined
- HD Rear Sun Gear Thrust Washer PTFE Lining
- Retainer Plate
- Endplay Shim
- Screws (3)
Details
- 28922-01HDK
- 28922-01HDK
- Sonnax
- New
Categories
- Parts - GM - Powerglide
- GM - Powerglide - Internal
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W8.0000” x H8.0000” x L8.0000”
- $15.00
