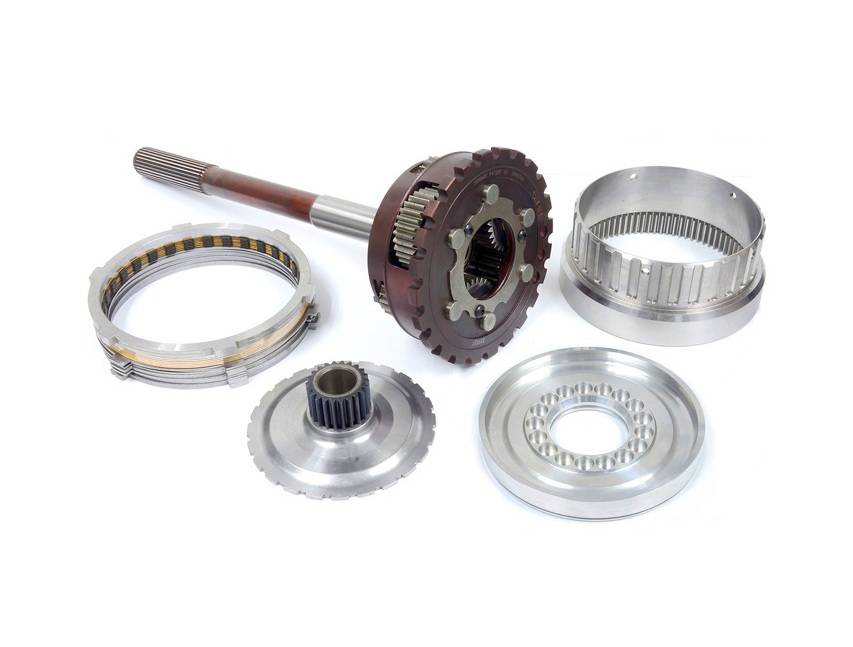

Powerglide 9310 Super Set Gear Set, Straight Cut - 1.58 Ratio, 28" Length, 2000 HP Rating

Powerglide 9310 Super Set Gear Set - Straight Cut - 1.58 Ratio - 28" Length - 2000 HP Rating

Made from 9310 material, this gear set features 7 thin reverse clutches & Powerglide 19 spline input shaft. Available in standard 28" length.

ATI stocks the widest selection of Powerglide Low Gears in the industry. These gears are based on the lightweight OEM 6 cylinder planetaries. Gear ratios include 1.58, 1.68, 1.76, 1.90, 1.94, 1.98, 2.08, 2.18 Vasco gear sets. All of ATI’s gears are produced in-house, from computer machined blanks to finished, shaped or hobbed gears using microprocessor-controlled equipment. The tools we use to cut our gears are coated by a Titanium Nitride process that improves tool hardness and allows the tool to remain in "like new" condition. This results in a premium finish on all gears and allows us to hold extremely close tolerances on pitch diameters and helix angles, assuring you the highest quality possible. These Specialty Ratio gear sets are for SB cars only, lightweight cars such as dragsters, or low torque, high RPM combination cars. 283, 327, mild 350 CI motors and lightweight combinations usually fair very well with these ratios. ATI limits HP to 650 as a max with a lightweight car. Stock, Super Stock, Comp, and Bracket Dragsters are all viable applications.

Helical & Straight Cut Super Vasco Set Gears

• All 8 gears are new - long and short pinions, sun & flange gear
• No factory gears are used
• Each gear made of high quality Vasco steel
• Recommended for engines with a stroke of 3.5” or less
• Super strong lightweight ring gears in steel or aluminum
• Eliminates power loss from friction
• All thrust loading in the Powerglide from the reverse ring gear to the reverse pressure plate is totally eliminated
• OEM carrier gear sets carry a 90 day quality of work warranty.
