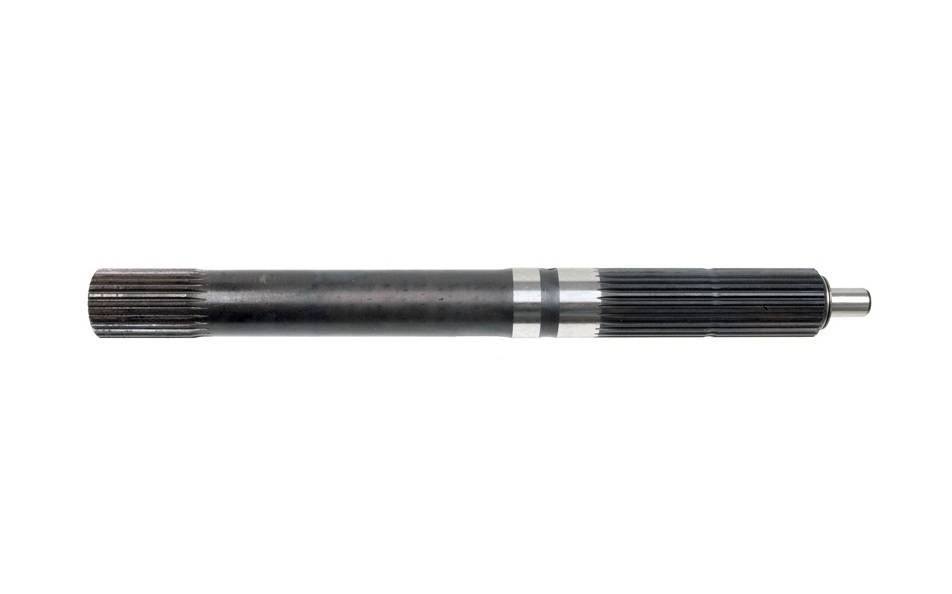

Input Shaft - Superglide 4, Ringless, The Big Shaft "SG4", Vasco

INPUT SHAFT - SUPERGLIDE 4 - RINGLESS - THE BIG SHAFT "SG4" - VASCO

ATI Racing Torsional Input Shafts work like a torsional spring bar, twisting and returning to totally eliminate breakage while reducing shock loads to the gear train. Designed to fit either the Powerglide or TH400 splines, these shafts are available for V8 and 6-cylinder carriers.

In addition to our precision-machined torsional shafts for PG, TH350 & TH400, Ford C-4, C-6 and AOD, we offer special extreme-duty models for the PG and TH400 made of Vasco steel. This material is exceptionally strong and resilient to withstand the most severe torsional shock.

ATI’s Patented Ringless Shaft and Stator Support Tubes use actual rings to seal nearly 100% of flow while bushings seal only 85% of your cooler flow. Lost cooler flow is wasted horsepower to make the pressure! Lost converter charge pressure means more slip at the top end and a less efficient converter!

ATI Ringless Input Shafts MUST be used with ATI Pumps. These ringless shafts are patented by ATI. Other manufacturers use bushings that will not work with ATI Input Shafts creating improper sealing which results in loss of converter charge, pressure and lubrication.

Why is a well made, straight and correct input shaft important?
Input shafts serve many purposes including:

1. Transfer power from the converter to the input sun gear while in low gear.
2. Transfer power from the converter to the high gear hub in high gear.
3. Direct oil coming from the converter to the front ring on the shaft and out through the pump to the oil cooler.
4. Direct oil from the cooler between the 2 rings and down through the center of the shaft to lube and cool the direct clutches, gear set, output shaft bushing and the entire transmission.
5. Maintain proper oil pressure in the converter and cooler with its sized holes that are “downstream restrictions” to control the flow out of the converter.
6. Center and support the Input Sun Gear from its pitch diameter to the ½ diameter that goes into the bushing on the output shaft
7. Center and support the Output Sun Gear (flange gear) via the “wedding band”.

Which companies in the industry are capable of making input shafts properly? Who has the hobs, shapers and cutters to cut splines? Do they have the machines and the expertise that is required to manufacture this critical part? Can they properly heat treat it, straighten and finish grind it? Or, do they just buy it from someone and resell it? One thing is for sure: at ATI, if we have a problem, we have a REASON, not an EXCUSE, because we make it in-house from start to finish. We find the problems, not you. The bottom line is simple: Manufacturing technique for this product is critical. Material is critical. Heat-treat is critical.
