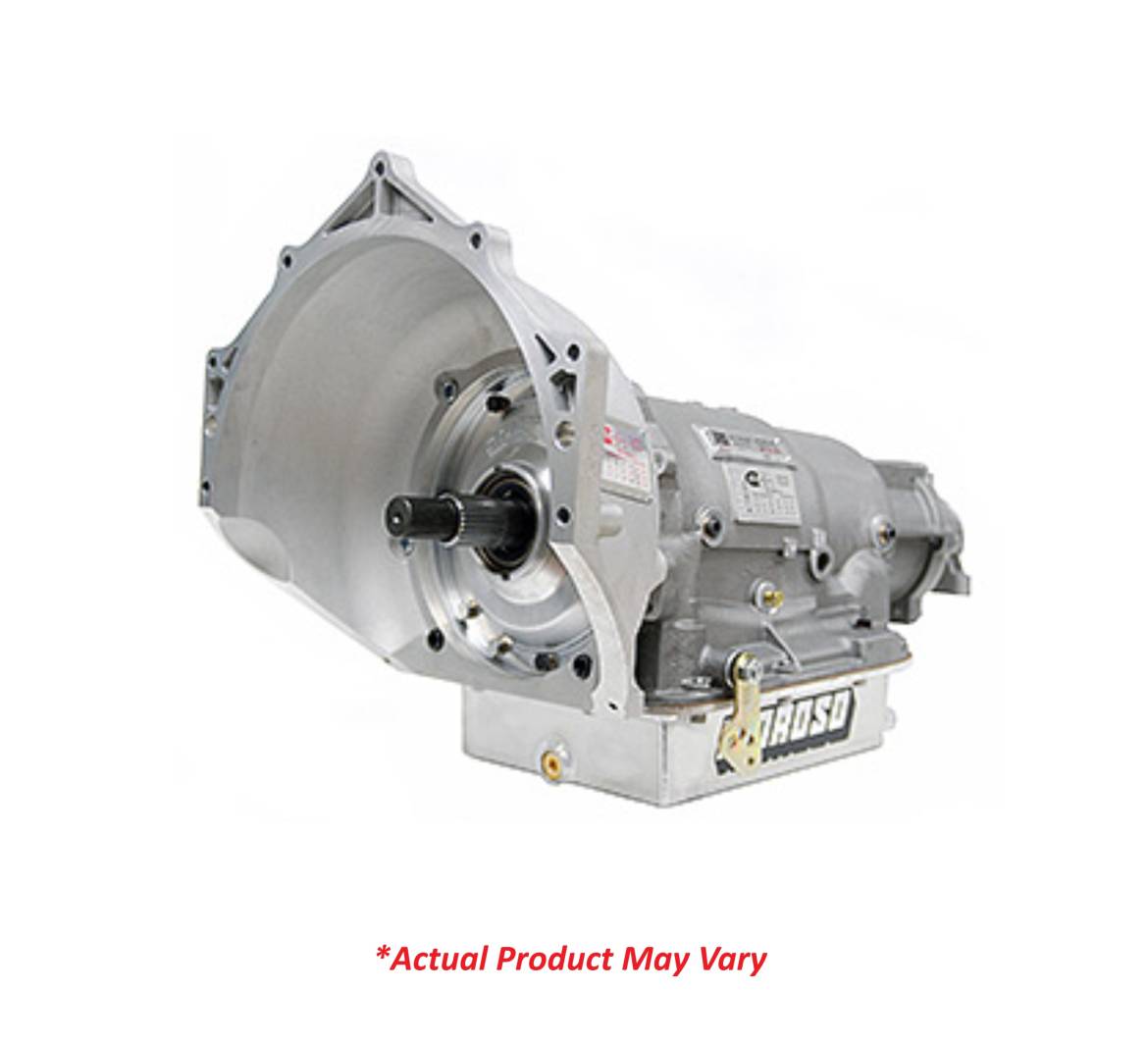

2-Speed Max Duty Outlaw T400 Transmission - 1.48 Low Gear, Helical 5-Pinion

2-Speed Max Duty Outlaw T400 Transmission - ATI Aluminum Transbrake
SFI SuperCase & SFI Chevy Bell - 1.48 Low Gear - Helical 5-Pinion Gear Type

• Race Clutches and Steels
• Increased clutch capacity in all positions - UP TO 9 Forward, 8 Direct and 5 Intermediates
• Blueprinted High-Flow Front Pump, w/ heat-treated Tube or ATI Super Pump
• Fwd Pattern Billet Aluminum Safety Reverse Transbrake Valve Body (PRN23), band apply option available
• ATI Severe Duty 36 Element Alum Direct Drum w/ Billet Piston
• Vasco Intermediate Shaft
• 1” Vasco Input Shaft w/ new Lightweight Steel Drum, Billet Piston
• New Billet Aluminum Reverse Servo Cover
• 4140 HT Steel Forward Clutch Hub
• HD Center Support
• Billet Aluminum Intermediate Piston
• HD Cast Aluminum Bearing Tail
• Deep Aluminum Cast Pan
• -6 AN fittings
• Lokar® direct mount dipstick

As horsepower gets easier and cheaper to make and racers set the bar higher and higher, a need is created for numerically lower gear sets with higher strength requirements. Today’s high HP racer needs a durable transmission with a less aggressive starting line ratio. Most racers achieve this by converting the Turbo 400 transmission to a 2-speed unit allowing them the ability to leave off the transbrake in 2nd gear. ATI now has an answer for this market and offers three variations of a 2-speed Turbo 400! OEM cased units are rated to 1800 HP and not intended for heavy weight cars. ATI SuperCase recommended over 2000 HP!

*Optional HD 300M output shaft recommended for vehicles over 3,000 lbs (with BBC) or 3,200 lbs (with SBC)

TH400 Transmissions

3 Speed Automatic Racing Transmissions

The Turbo 400 is the strongest of the GM 3-Speeds. Today its popularity has grown beyond the workhorse reputation the 400 has long had. Bracket racers who want seasons of reliability or ultra high HP Pro Mod cars can both rely on the T400.

• Lots of gear ratios available
• Can be made lightweight
• Many upgrades available
• Capable of holding 3000 HP
• Lock-Up option now available
